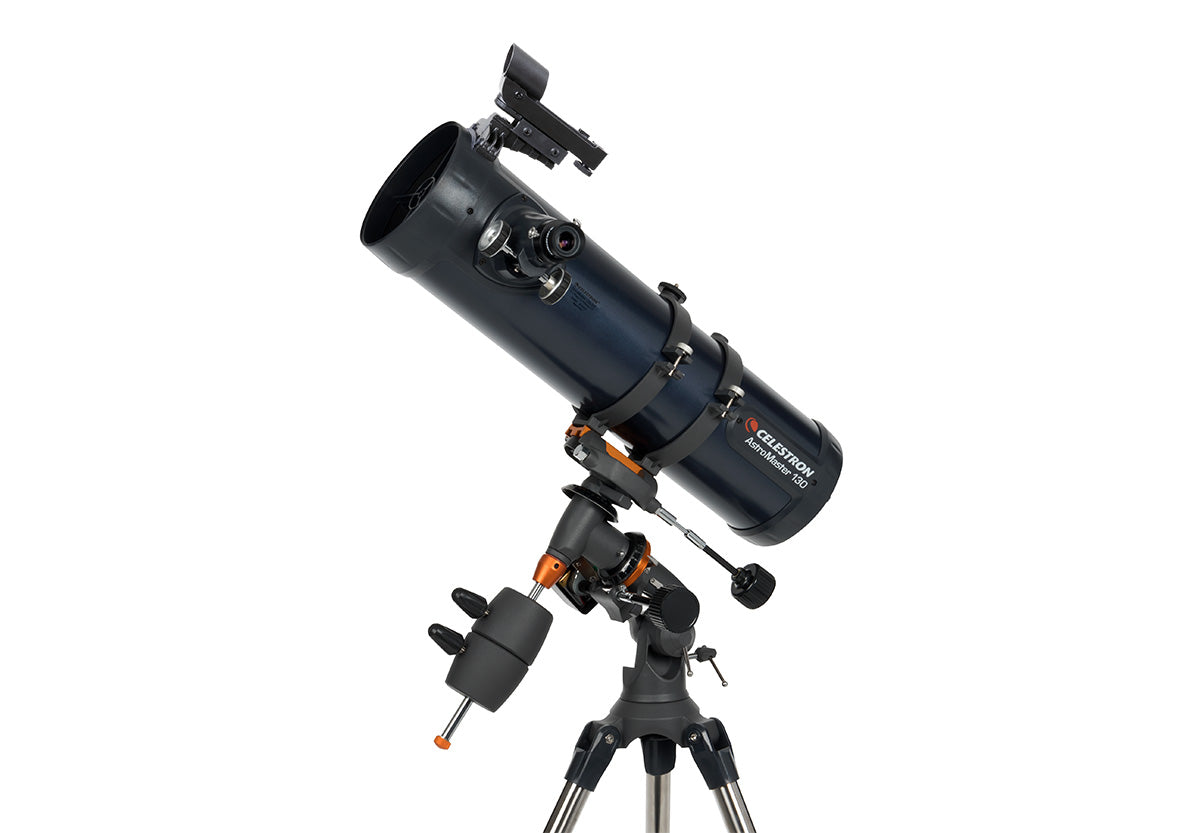

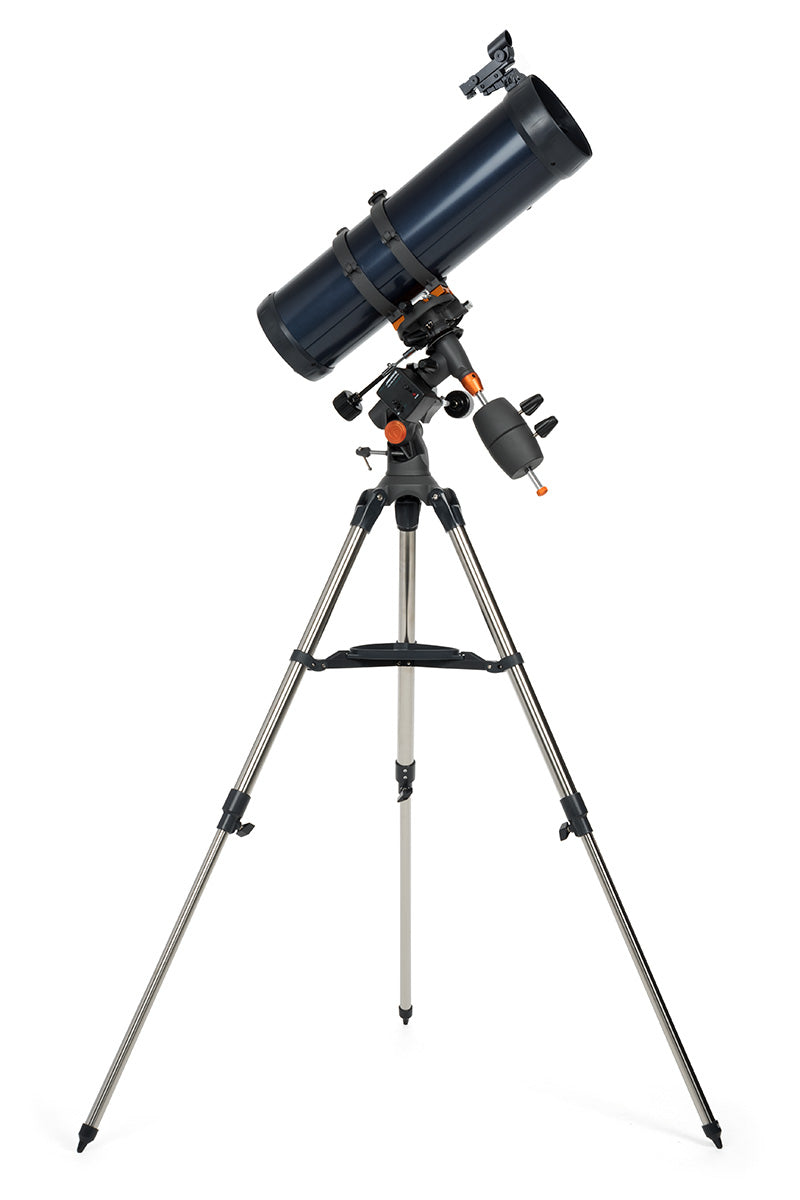

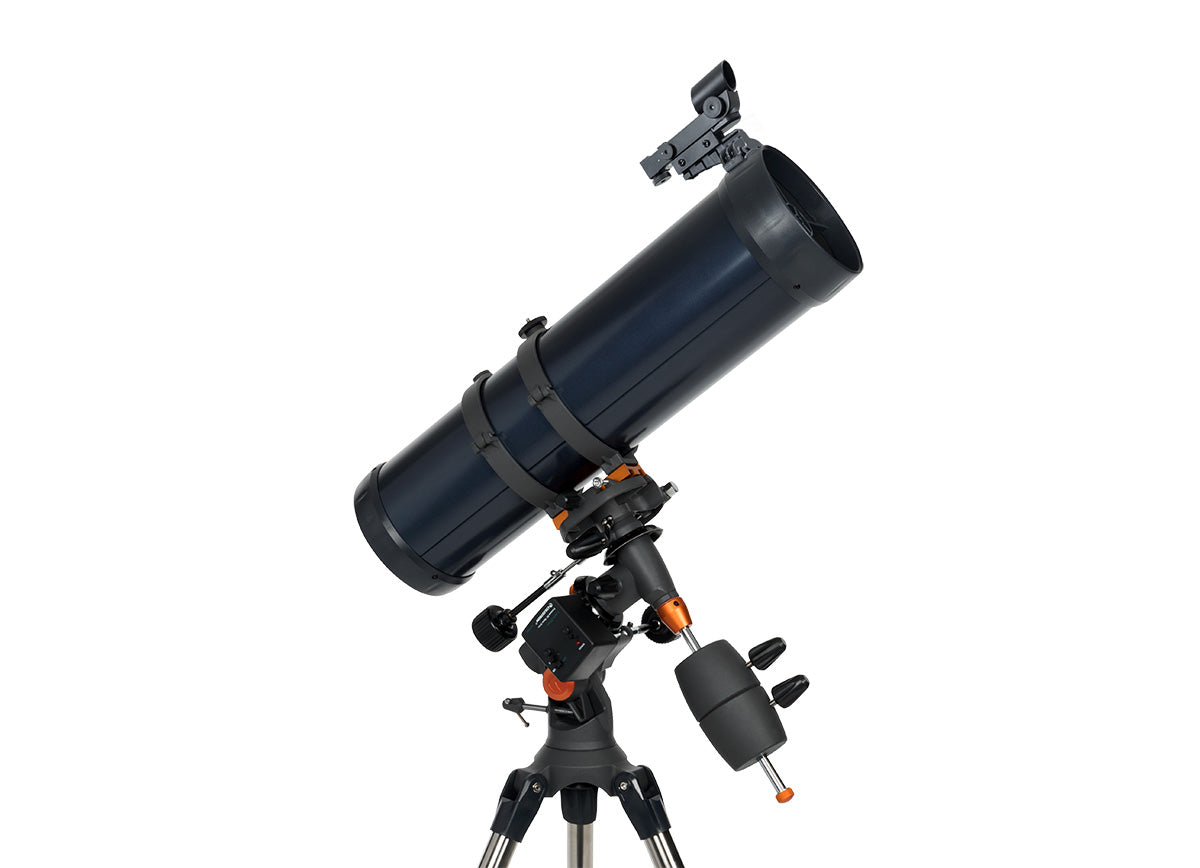

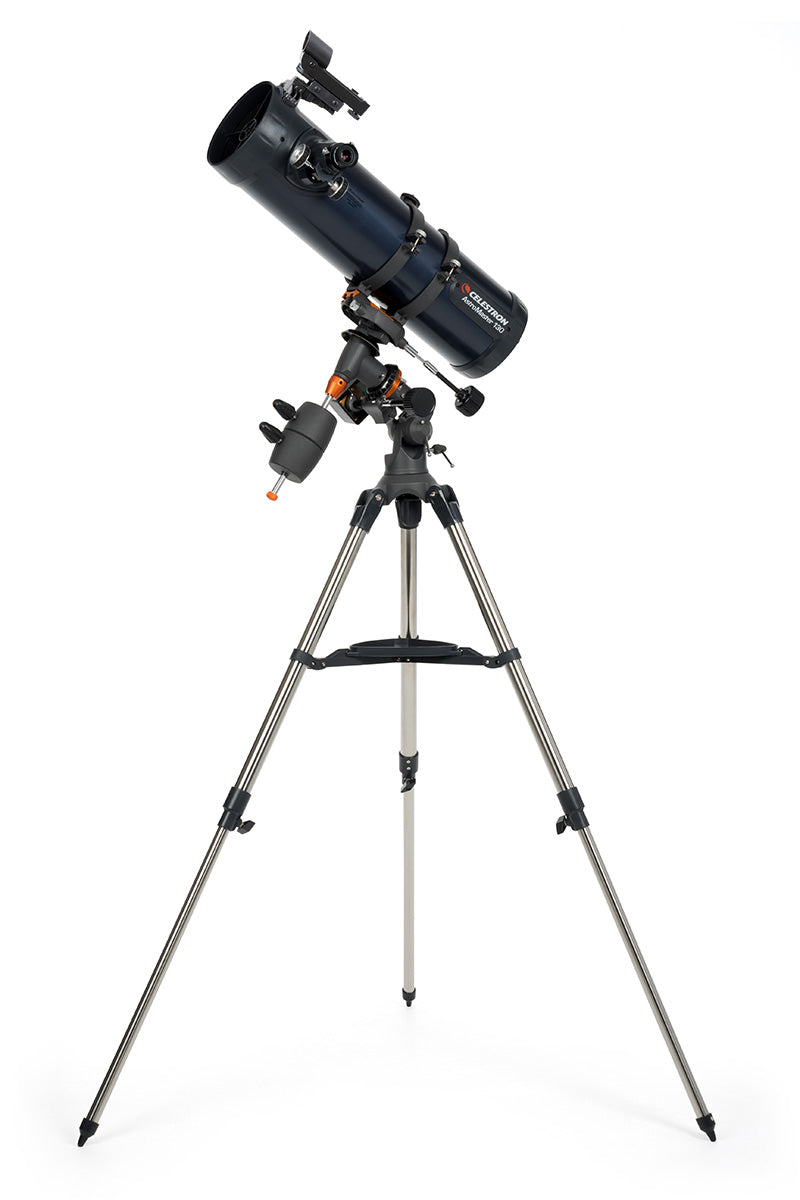

AstroMaster 130EQ with Motor Drive and Phone Adapter
Item #: 31060- Manual German equatorial mount with setting circles - to locate and track sky objects
- Adjustable, full height steel tripod with deluxe accessory tray
- Quick and easy no-tool setup
- Accessories include a 20mm and 10mm eyepiece, a finderscope, a smartphone adapter, and a motor drive
- The smartphone adapter connects your smartphone to your telescope, so you can capture images and video through the eyepiece
- The adapter works with any eyepiece that has an outside diameter of 45mm or smaller
- Motor drive automatically tracks celestial objects as they appear to move across the night sky
Overview
- Manual German equatorial mount with setting circles - to locate and track sky objects
- Adjustable, full height steel tripod with deluxe accessory tray
- Quick and easy no-tool setup
- Accessories include a 20mm and 10mm eyepiece, a finderscope, a smartphone adapter, and a motor drive
- The smartphone adapter connects your smartphone to your telescope, so you can capture images and video through the eyepiece
- The adapter works with any eyepiece that has an outside diameter of 45mm or smaller
- Motor drive automatically tracks celestial objects as they appear to move across the night sky
Description
Discover our Solar System with the Celestron AstroMaster 130EQ! You’ll be ready to observe in minutes thanks to the quick and easy no-tool setup. The 130EQ provides bright, clear images of the Moon, planets, star clusters, and more for great nighttime viewing.
Manual German Equatorial telescope

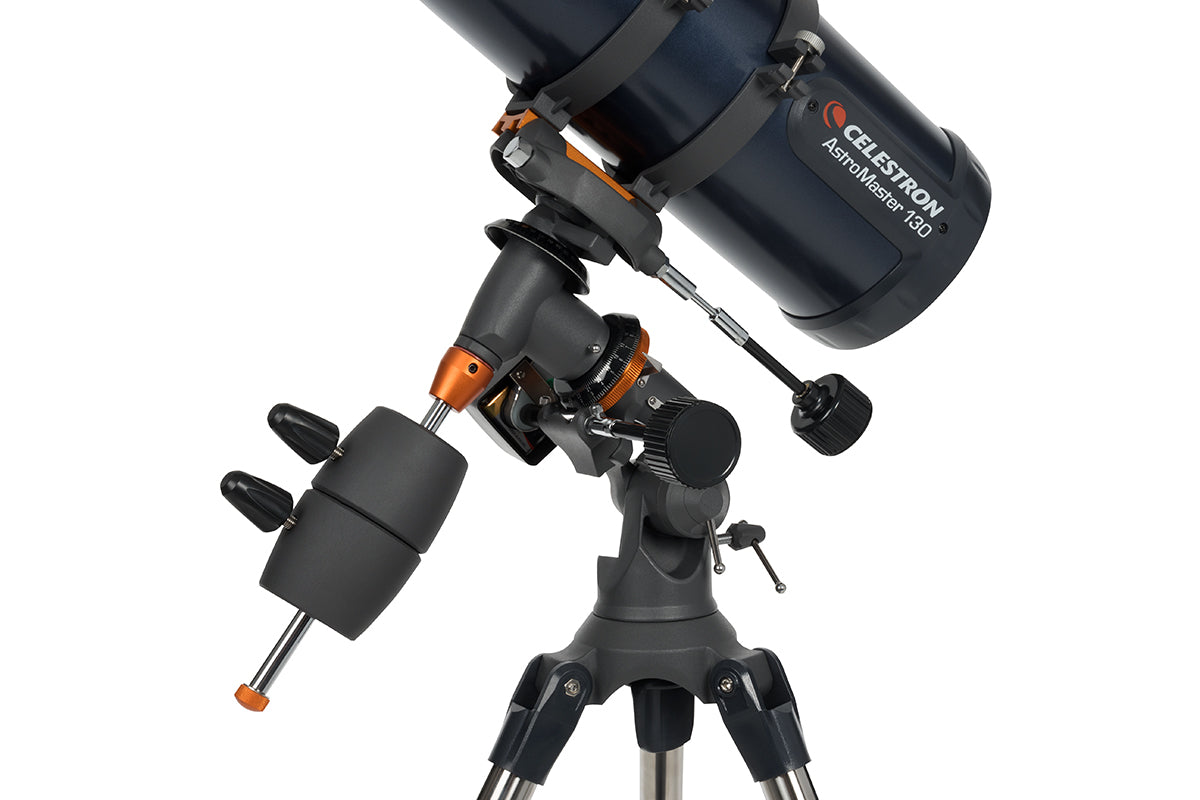

The AstroMaster mount comes with two slow motion control knobs that allow you to make fine pointing adjustments to the telescope in both Right Ascension and Declination axes, also referred to as RA and DEC.
Accessories Included

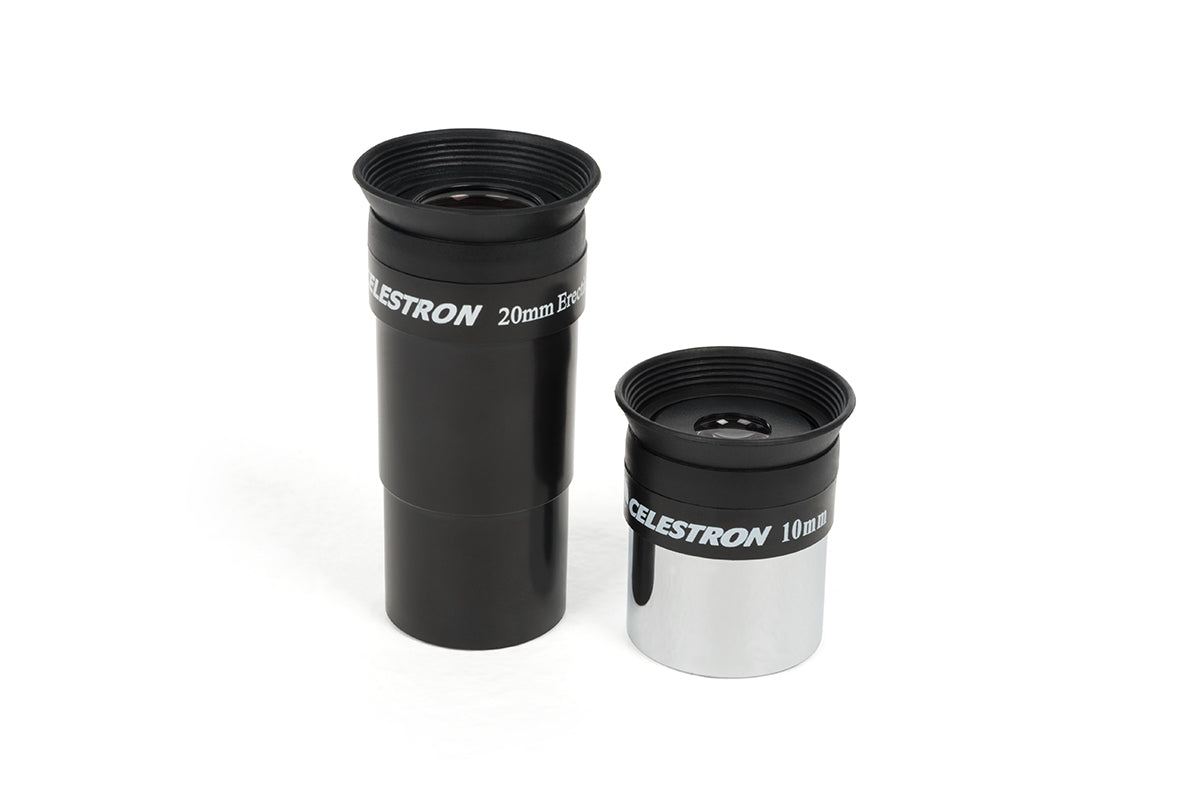

Accessories include a 20mm and 10mm eyepiece, a finderscope, a smartphone adapter, and a motor drive. The two eyepieces offer different magnifications for low and high powered views.
Motor Drive

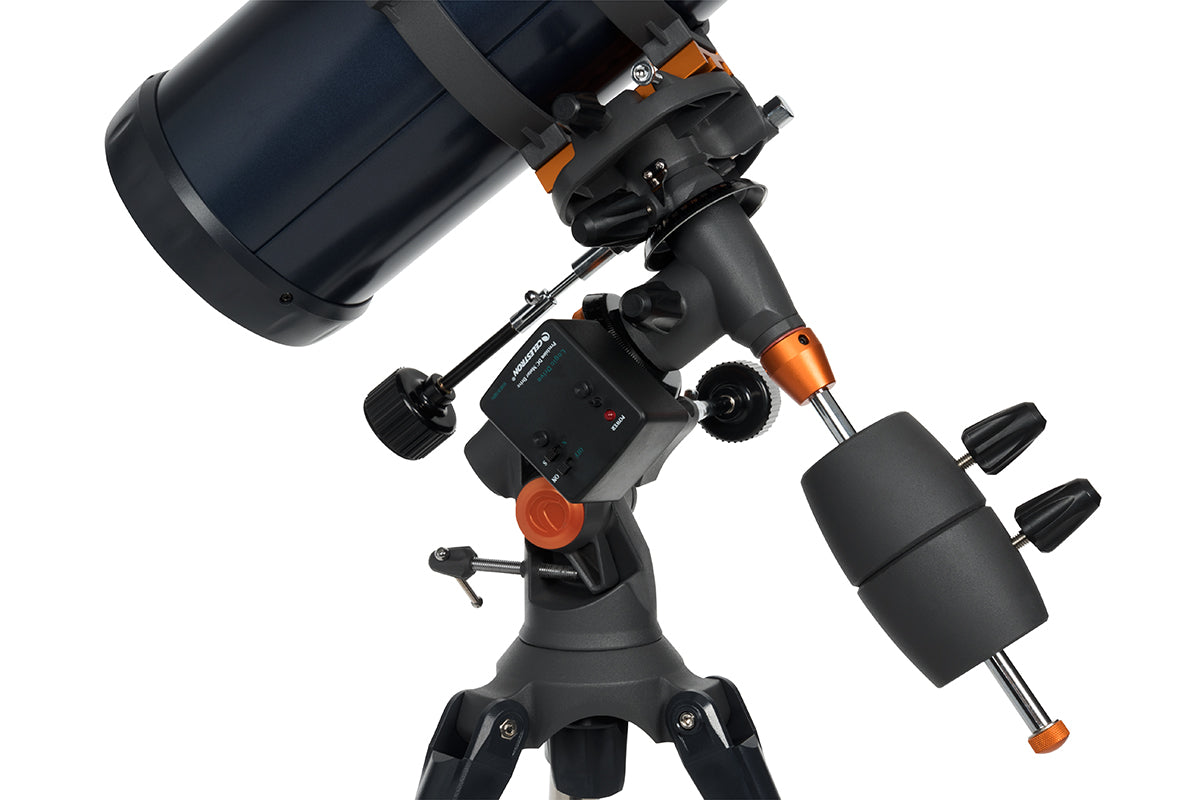

Turn your manual German equatorial mount into a tracking mount by adding the included RA motor drive to your telescope. This easy-to-install RA motor drive compensates for the Earth’s rotation, so the telescope tracks a star’s movement through the night sky from east to west. When the telescope mount is properly polar aligned and the RA drive is attached and running, the user need only make occasional adjustments in declination (Dec) to keep an object in the eyepiece for long periods of time. The Celestron single-axis motor drive runs on a 9V battery, so there are no cords to get in the way. The drive can be used in either the Northern or Southern Hemisphere. To change hemispheres (reverse the motor’s direction), simply by flip the N/S switch on the face of the motor drive. It is also simple to change the speed of the motor. A “Speed Rate Regulator” knob is located just under the power indicator and can be turned in either direction to slow down or speed up the motor. Since solar system objects like the Moon and planets move through the sky at different rates than deep-sky objects do, this gives you the ability to match the motor’s speed to the particular type of object you are observing.
Smartphone Adapter

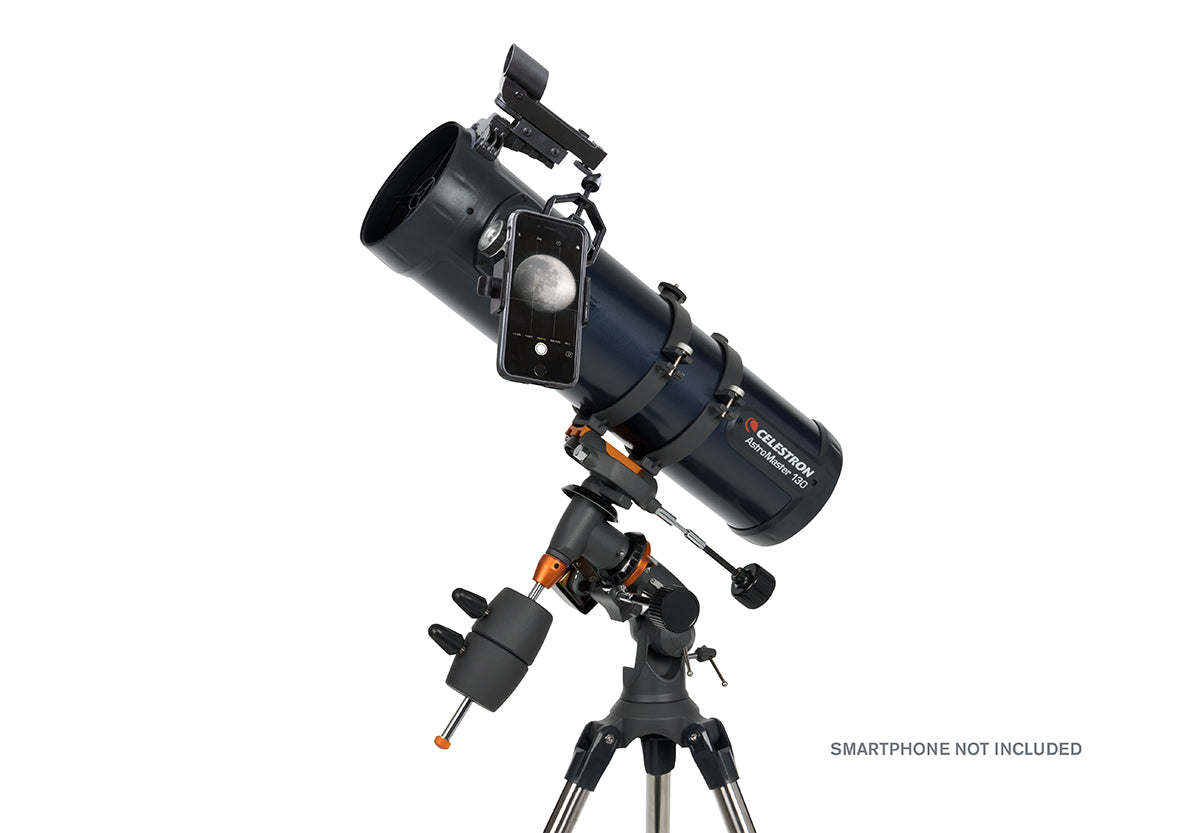

Image celestial or terrestrial objects with this smartphone adapter. With its light, rigid frame, this accessory allows you to connect any smartphone to any telescope eyepiece with an outside diameter of 45mm. The additional magnification provided by the eyepiece allows your phone to capture great images of the Moon and planets. This smartphone adapter installs easily by clamping over the top of an eyepiece. The smartphone is held in position with the help of tightening knobs that securely lock your phone in place. The adapter accommodates most phones with the case on, but some large and/or bulky phone cases (including folio style cases) may need to be removed for the phone to fit in the adapter.
Starry Night Software
Download Celestron’s Starry Night Software and learn about the night sky, celestial objects, and how to plan your next observing session. Celestron Starry Night Software is the premier astronomy software package on the market, providing resources and knowledge to view our solar system and beyond.
Specifications
Optical Tube Info: | |
---|---|
Optical Design: | Newtonian Reflector |
Aperture: | 130mm (5.11") |
Focal Length: | 650mm (25.6") |
Focal Ratio: | f/5 |
Focal Length of Eyepiece 1: | 20mm (.78") with built-in erect image corrector |
Magnification of Eyepiece 1: | 33x |
Focal Length of Eyepiece 2: | 10mm (.4") standard |
Magnification of Eyepiece 2: | 65x |
Barlow Lens: | Not Included |
Finderscope: | Built-on StarPointer™ red dot finderscope |
Star Diagonal: | None |
Optical Tube: | Aluminum |
Highest Useful Magnification: | 307x |
Lowest Useful Magnification: | 19x |
Limiting Stellar Magnitude: | 13.1 |
Resolution (Rayleigh): | 1.07 arc seconds |
Resolution (Dawes): | .89 arc seconds |
Light Gathering Power (Compared to human eye): | 345x |
Secondary Mirror Obstruction: | 44mm (1.73") |
Secondary Mirror Obstruction by Diameter: | 34% |
Secondary Mirror Obstruction by Area: | 11% |
Optical Coatings: | TBD |
Optical Tube Length: | 610mm (24") |
Optical Tube Diameter: | TBD |
Optical Tube Weight: | TBD |
Dovetail: | CG-5 Dovetail bar |
Mount Info: | |
Mount Type: | Manual German Equatorial |
Height adjustment range (includes mount and tripod): | TBD |
Tripod Leg Diameter: | 31.75mm (1.25") steel |
Accessory Tray: | Yes |
Tripod Weight: | TBD |
Slew Speeds: | Manual |
Dovetail Compatibility: | CG-5 saddle plate |
Software: | Celestron Starry Night Basic Edition Software and SkyPortal App |
Included Items |
Optical tube| Tripod Accessory tray 2 eyepieces – 20mm with built-in erect image corrector and a 10mm Motor Drive Smartphone Adapter |
Phone Adapter Info: | |
Phone Compatibility: | Any smartphone |
Comptabile Optics: | Any 1.25" eyepiece with a 45mm outside diameter or smaller |
Dimensions: | 177.8mm x 101.6mm 38.1mm (7" x 4" x 1.5") |
Weight: | 2 oz |
Videos
Support & Downloads
Manuals: |
---|
Motor Drive Manual |
AstroMaster EQ Manual |
Other Product Files: |
How to Align a Red Dot Finder to Your Telescope Video |
Solar Safety Warning |
