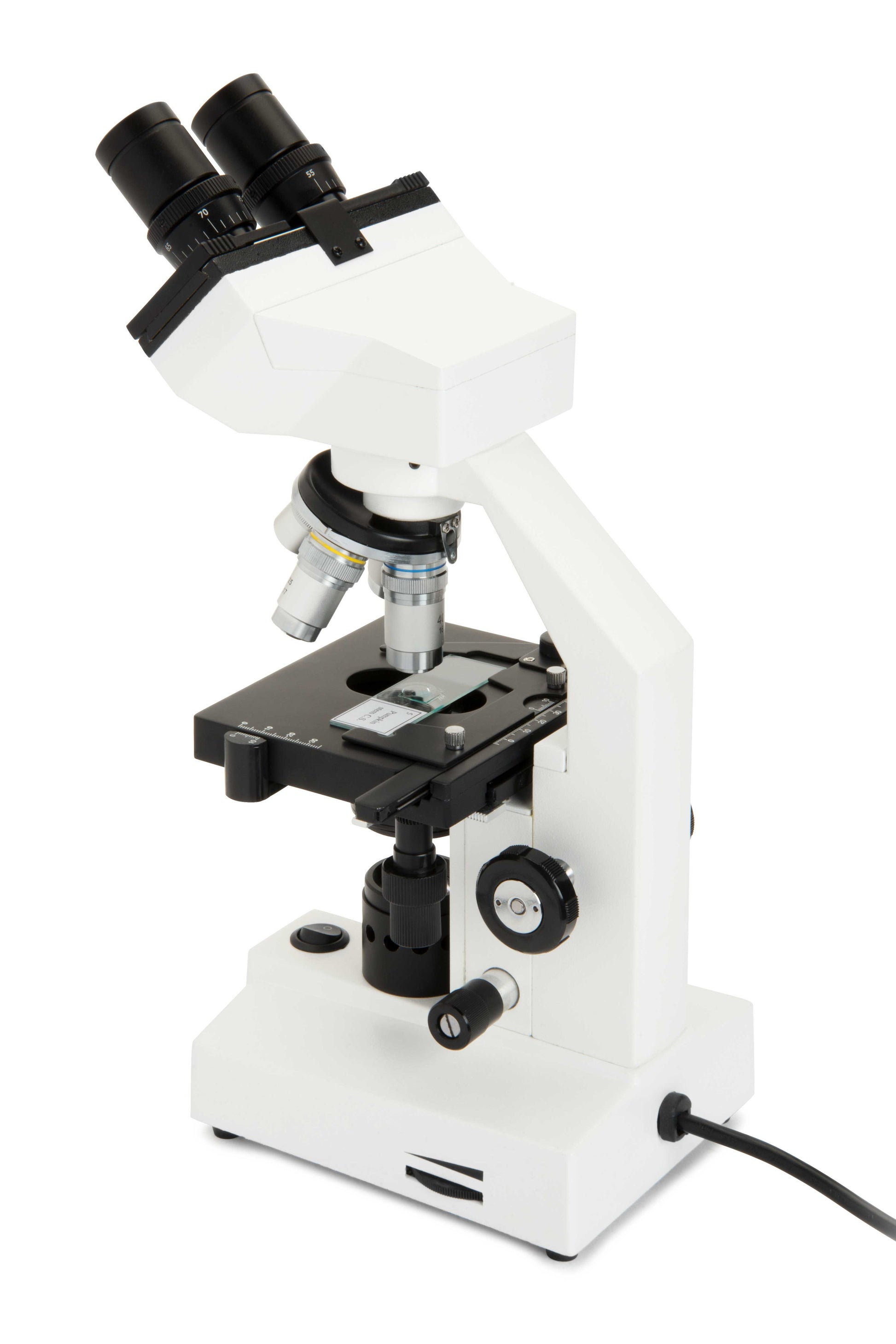

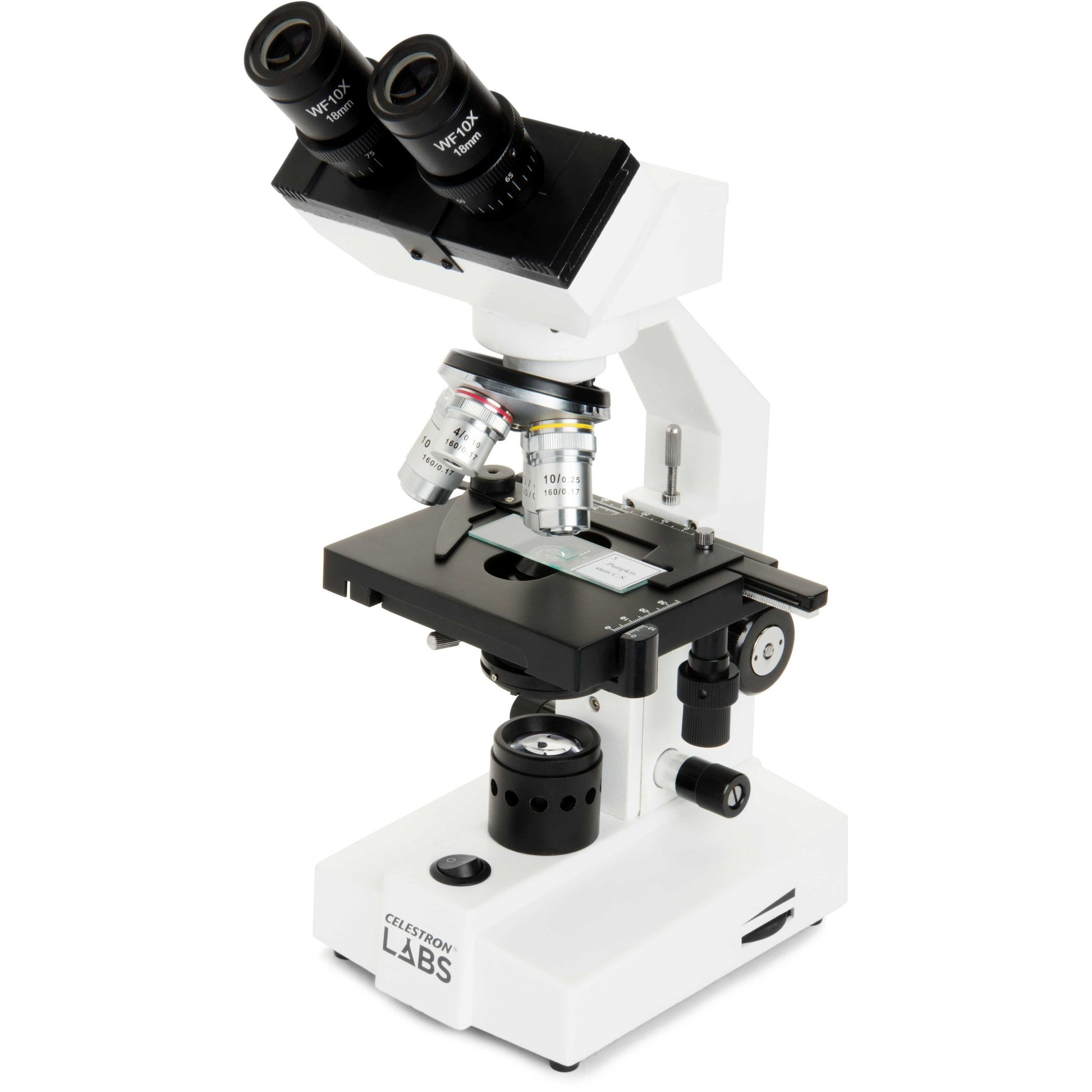

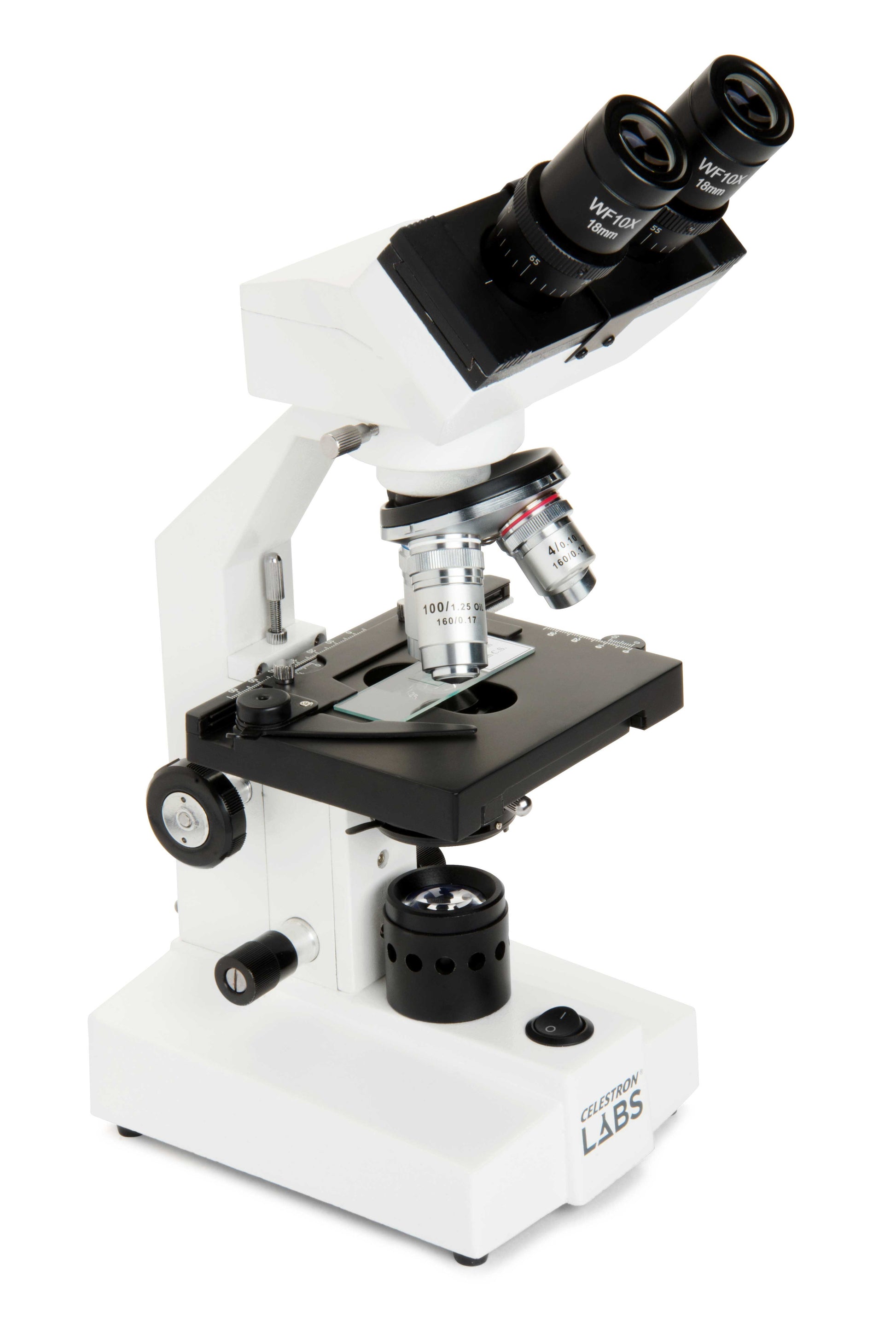

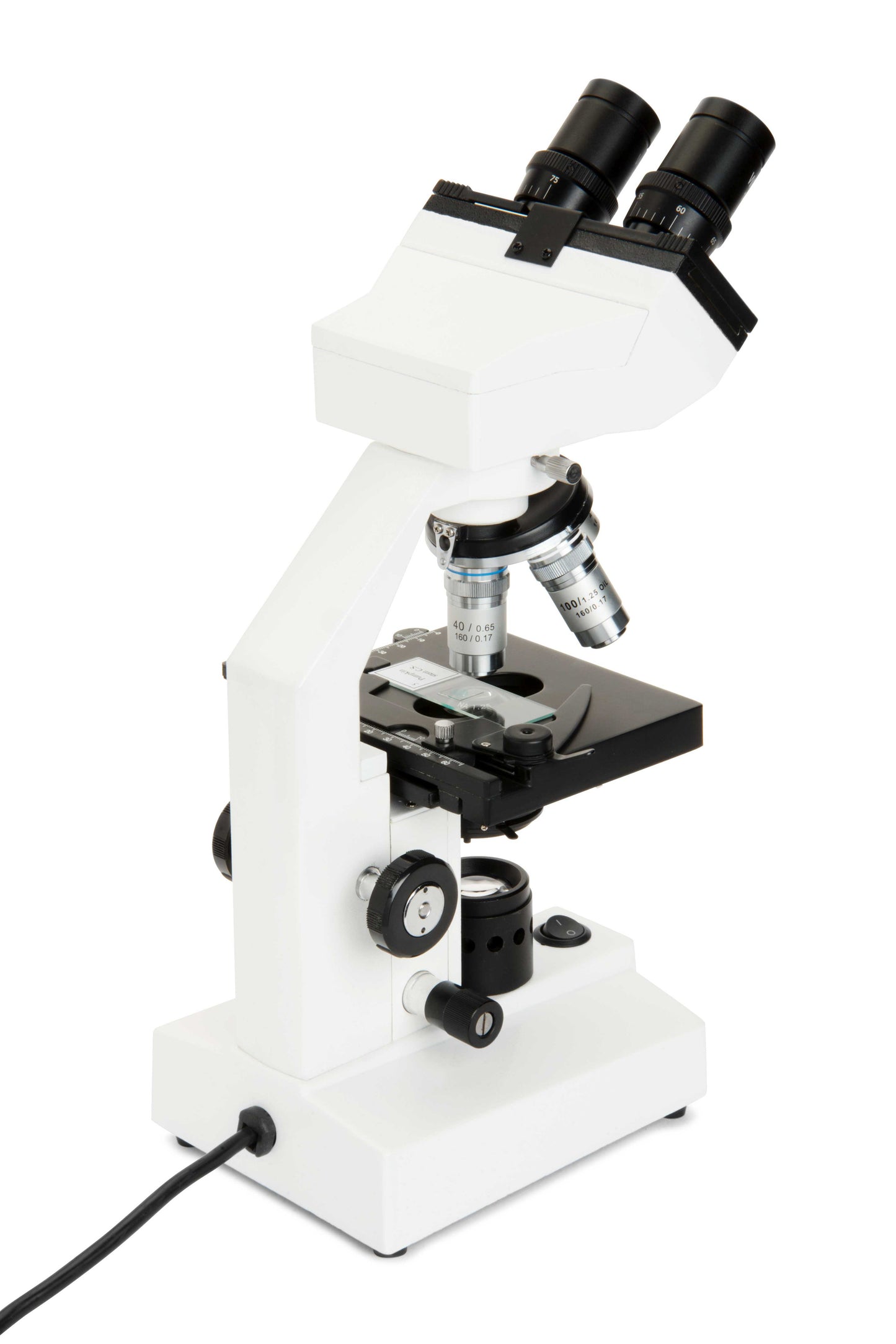

Celestron Labs CB2000CF Compound Microscope
Item #: 44131 / 44131-CGL- Lab-ready compound binocular microscope with 2000x power
- 10x and 20x eyepieces (10x with pointer)
- 4 fully achromatic objective lenses- 4x, 10x, 40x, 100x
- View specimens at 40x, 80x 100x, 200x, 400x, 800x, 1000x and 2000x magnification
- Adjustable Binocular head
- All-metal construction with fully mechanical stage
- Coarse and fine focus knobs

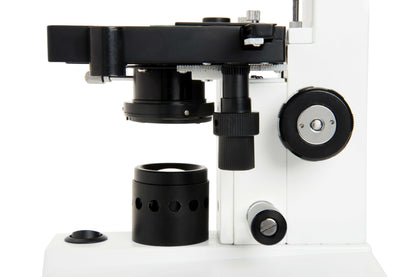

- Built-in, adjustable LED lower illumination with Abbe condenser and iris diaphragm
Overview
- Lab-ready compound binocular microscope with 2000x power
- 10x and 20x eyepieces (10x with pointer)
- 4 fully achromatic objective lenses- 4x, 10x, 40x, 100x
- View specimens at 40x, 80x 100x, 200x, 400x, 800x, 1000x and 2000x magnification
- Adjustable Binocular head
- All-metal construction with fully mechanical stage
- Coarse and fine focus knobs
- Built-in, adjustable LED lower illumination with Abbe condenser and iris diaphragm
Customers Also Purchased
Description
The Celestron Labs CB2000CF Binocular Compound Microscope offers all the advanced features you’re looking for at an economical price. With 10x and 20x eyepieces and 4 included objective lenses (4x, 10x, 40x and 100x), you’ll achieve magnification ranging from 40x to 2000x.
Strong and stable thanks to its all-metal construction, this microscope features a fully adjustable, mechanical stage so you can easily center your specimen slides. Improve the quality of your magnified images with the included 3 colored filters. The 10 included prepared slides guarantee exciting discoveries right out of the box. The N 1.25 Abbe condenser with iris diaphragm concentrates and focuses the lower illumination for enhanced viewing making the CB2000CF an excellent tool for labs, schools, scientific research and more.
Specifications
| General | |
|---|---|
| Type of Microscope: | Compound Binocular |
| Head: | Binocular with 360° rotatable 45° incline and interpipilary distance adjustability |

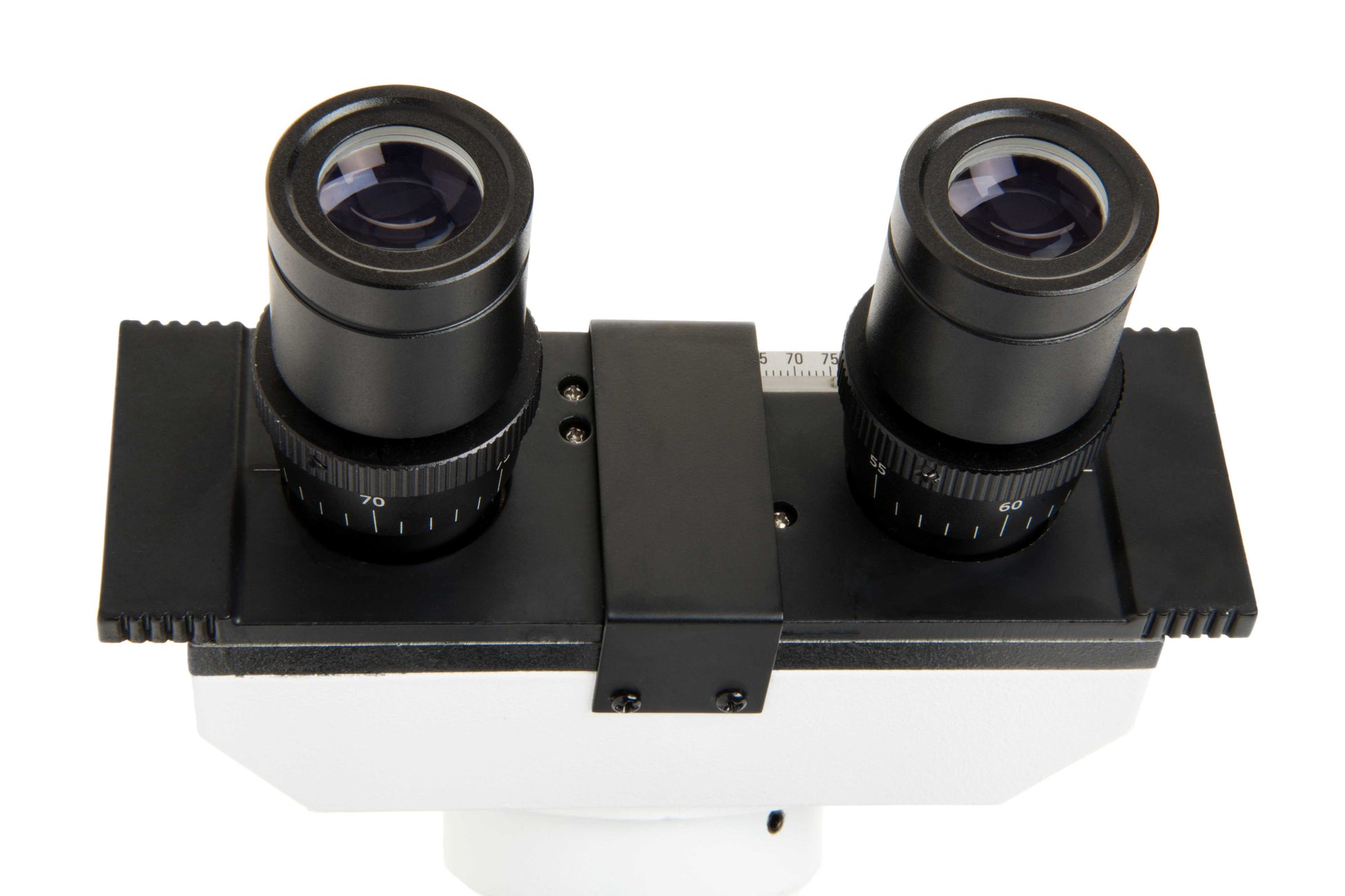

| Eyepiece(s) Magnification: | (1) 10x and (1) 20x (10x with pointer) |
| Eyepiece(s) Diameter: | 23.2mm (.91") |
| Nosepiece: | quadruple, rotational |
| Objective(s) Type: | Refractive |
| Objective(s) Standard: | DIN |

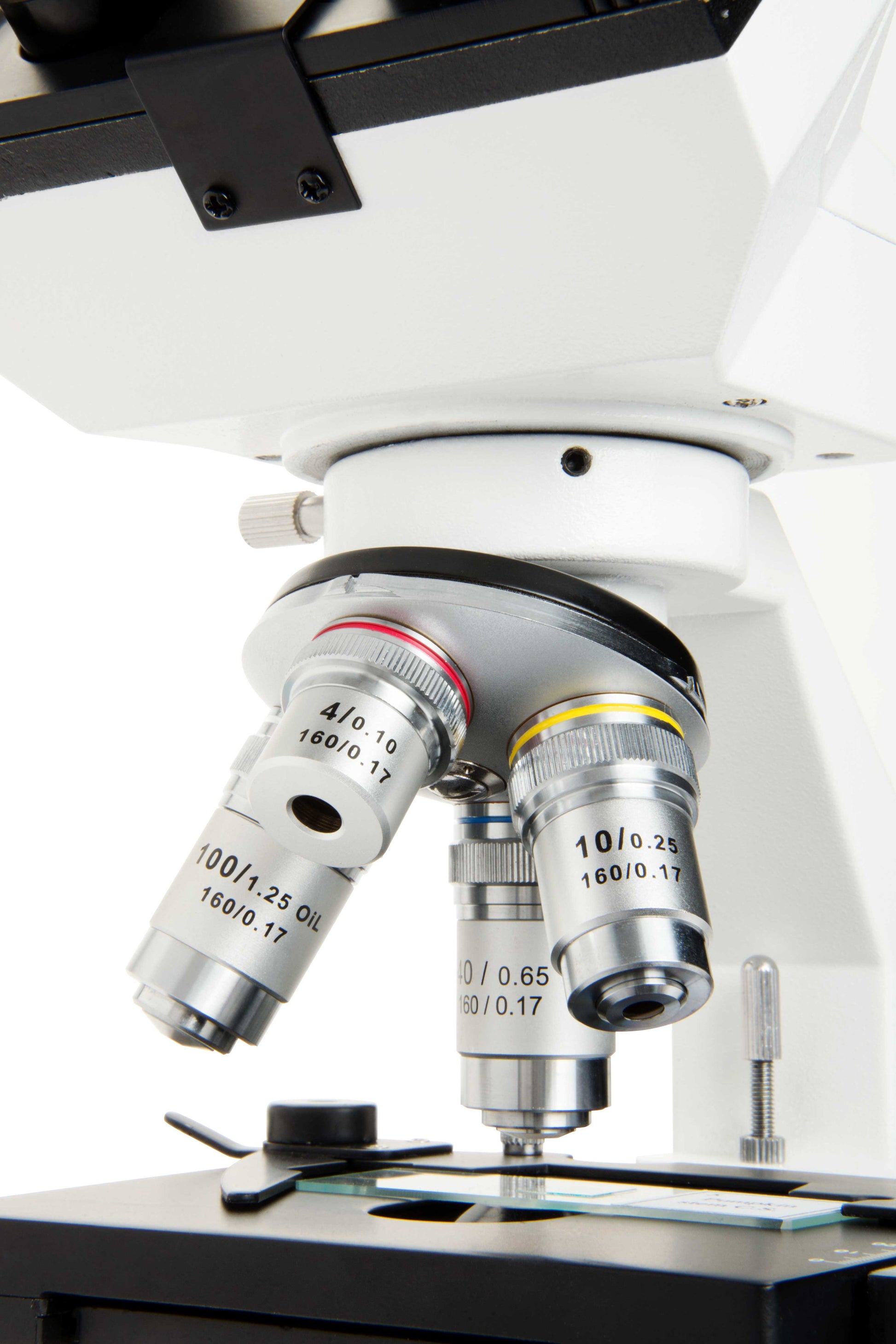

| Objective(s) Magnification: | (4) 4x, 10x, 40x, 100x immersion, all achromatic |
| Objective(s) Thread: | 4/5" x 1/36" |
| Focus Type(s): | Rack and pinion, coarse and fine focus (individual dials) |
| Focus Travel (per rotation): | 0.1mm (.004") |
| Magnification Range: | 40x to 2000x (40x, 80x, 100x, 200x, 400x, 800x, 1000x and 2000x) |
| Illumination Type: | LED |
| Illumination Position(s): | Lower |
| Illumination Adjustability Mechanism: | Dial |
| Power Source: | Universal AC 100-240V adapter and interchangeable plugs of type A, C, G, and I configurations |
| Battery Option: | N/A |

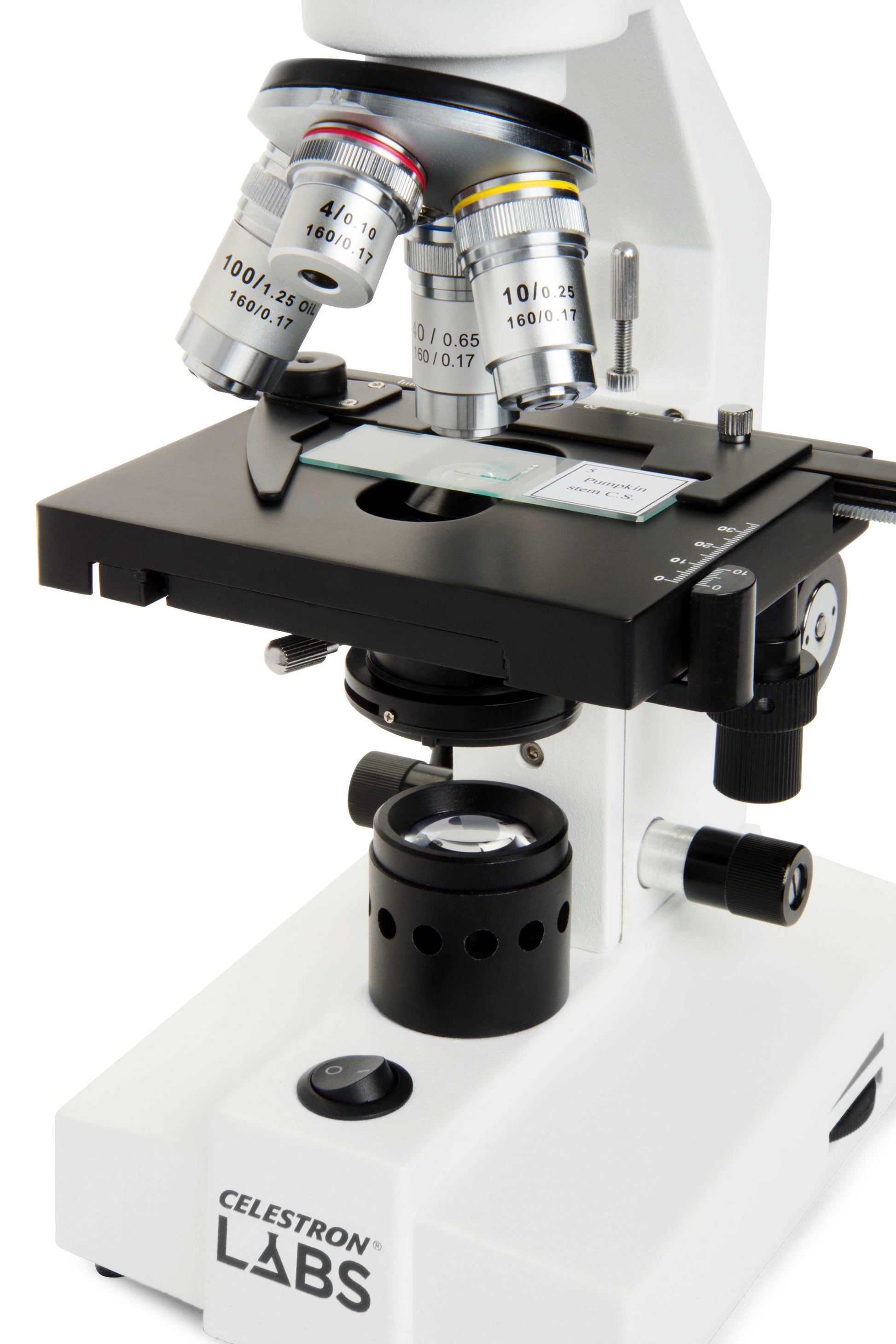

| Stage: | Mechanical stage, 110mm x 120mm (4.3" x 4.7") |
| Condenser Type: | Abbe with Iris adjustment |
| Condenser N.A.: | 1.25 |
| Stage Diaphragm: | N/A |
| Included Items: |
3 color filters (blue, white opaque, green) Immersion oil ,br/> 10 Prepared Slides: 1. Wall of stomach, sec. 2. Stratified flat epithelium, sec. 3. Testis, sec. 4. Aspergillus, w.m. 5. Rhizopus nigricans, w.m. 6. Small intestine, c.s. 7. Lily anther, c.s. 8. Hydrilla verticallata, w.m. 9. Spirogyra, w.m. 10. Lily ovary, c.s. |
Videos
Accessories
FAQ
Why are my specimens different from the ones listed on the website?
In the event that a particular specimen becomes unavailable, a substitution may be made to any one listed below.
Specimen Mounted Slides included:
i. Wall of stomach, sec.
ii. Stratified flat epithelium, sec.
iii. Testis, sec.
iv. Aspergillus, w.m.
v. Rhizopus nigricans, w.m.
vi. Small intestine, c.s.
vii. Lily anther, c.s.
viii. Hydrilla verticallata, w.m.
ix. Spirogyra, w.m.
x. Lily ovary, c.s.
