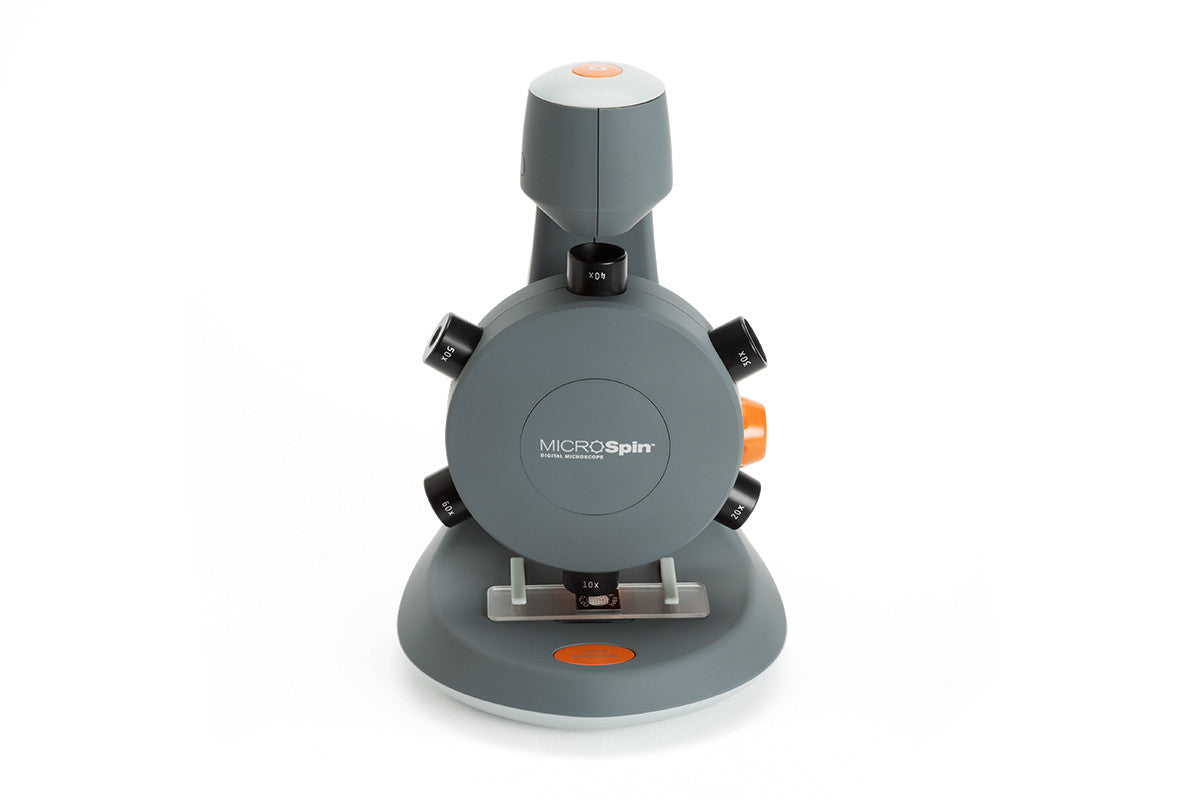

MicroSpin 2 MP Digital Microscope
Item #: 44114- 2MP USB desktop digital microscope
- Six objectives in vertically mounted objective wheel
- 100x, 200x, 300x, 400x, 500x, 600x magnification
- MicroSpin Capture Pro Software DVD/CD included

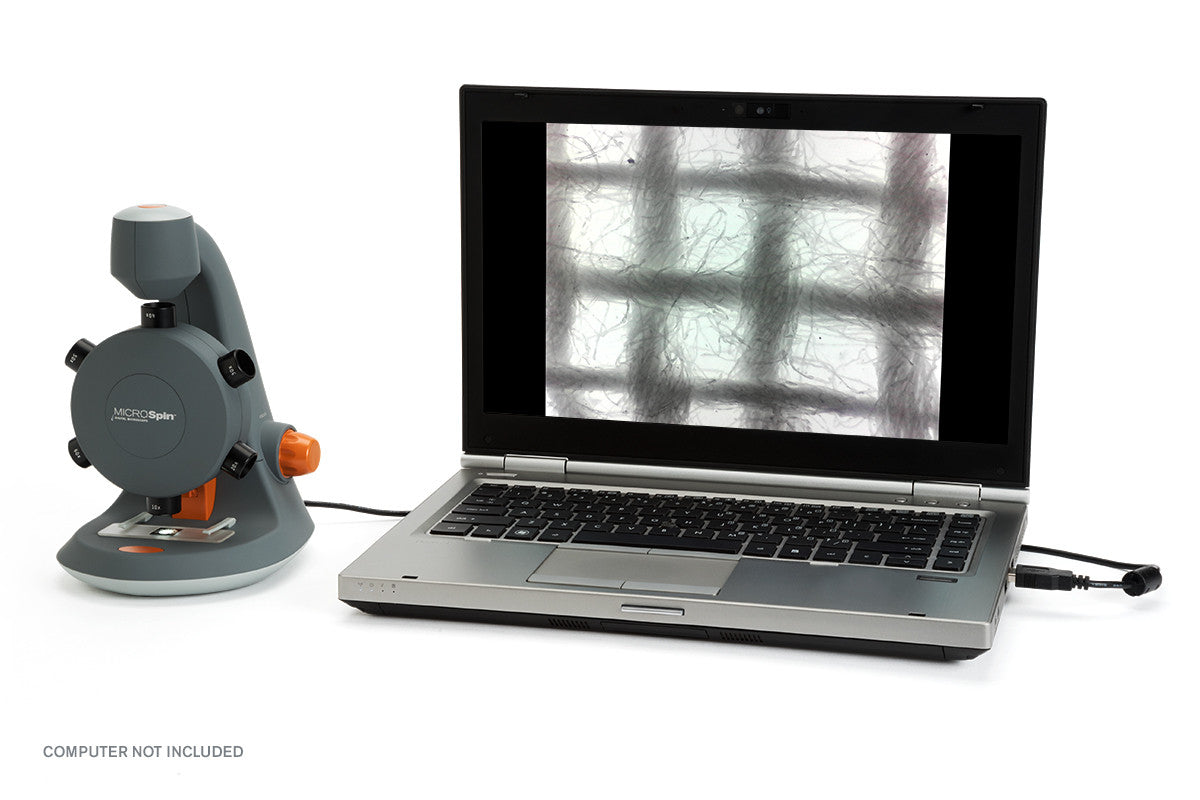

- USB 2.0 computer connection
- Windows and Apple OS compatible
Overview
- 2MP USB desktop digital microscope
- Six objectives in vertically mounted objective wheel
- 100x, 200x, 300x, 400x, 500x, 600x magnification
- MicroSpin Capture Pro Software DVD/CD included
- USB 2.0 computer connection
- Windows and Apple OS compatible
Description

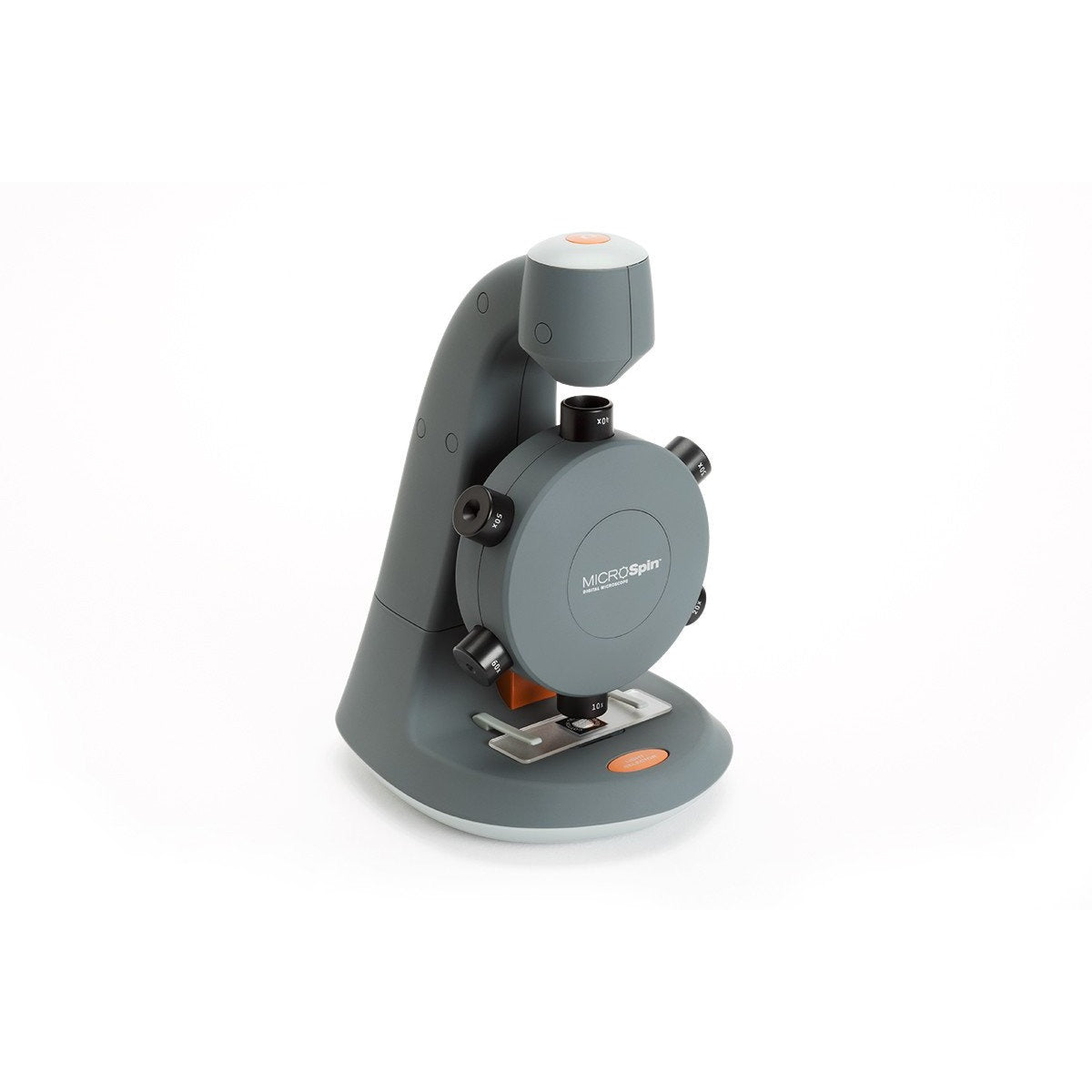

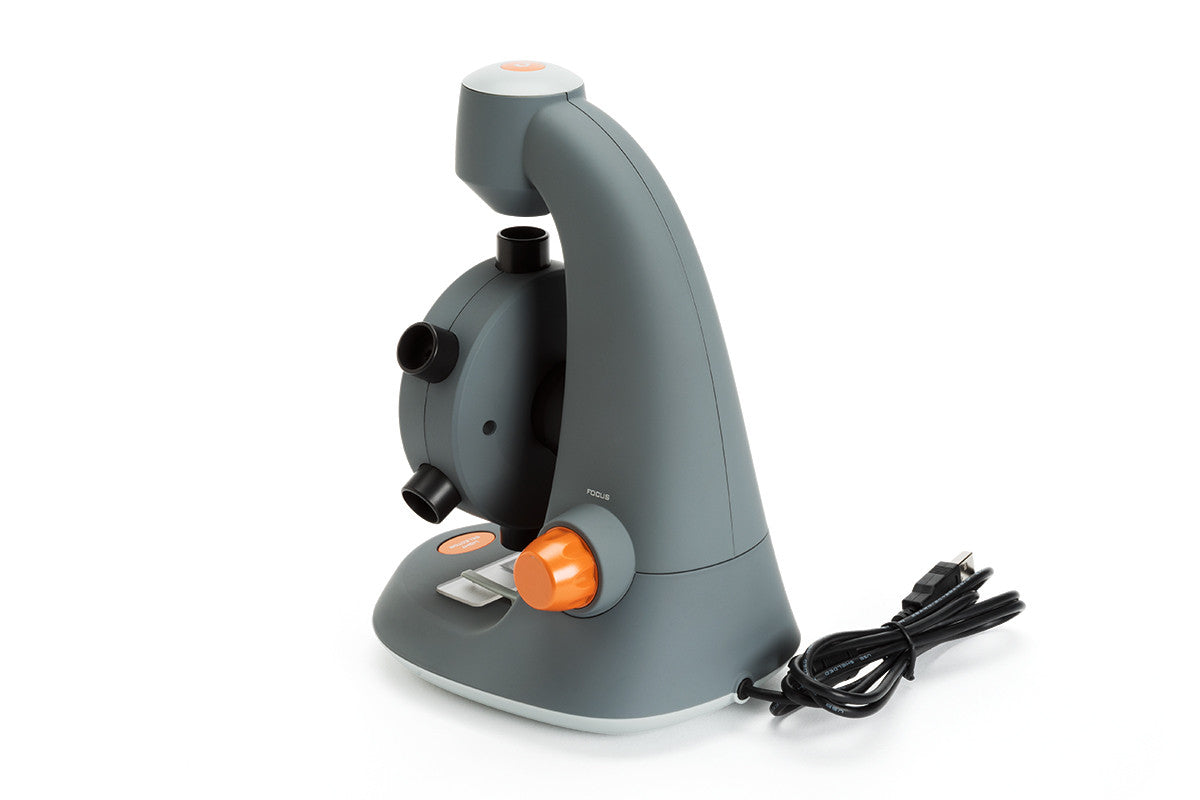

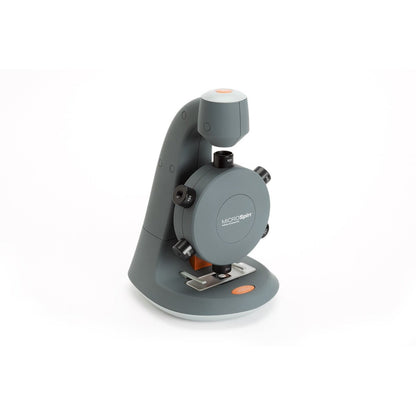

The intermediate-level MicroSpin is a 2MP desktop digital microscope with a six objectives wheel. A 2MP imaging sensor paired with upper and lower illumination for reflective and transparent illumination provides excellent resolution and illumination so you can capture high quality still images and video. A simple, non-adjustable stage with plastic clips holds slides in place for an optimized viewing experience.

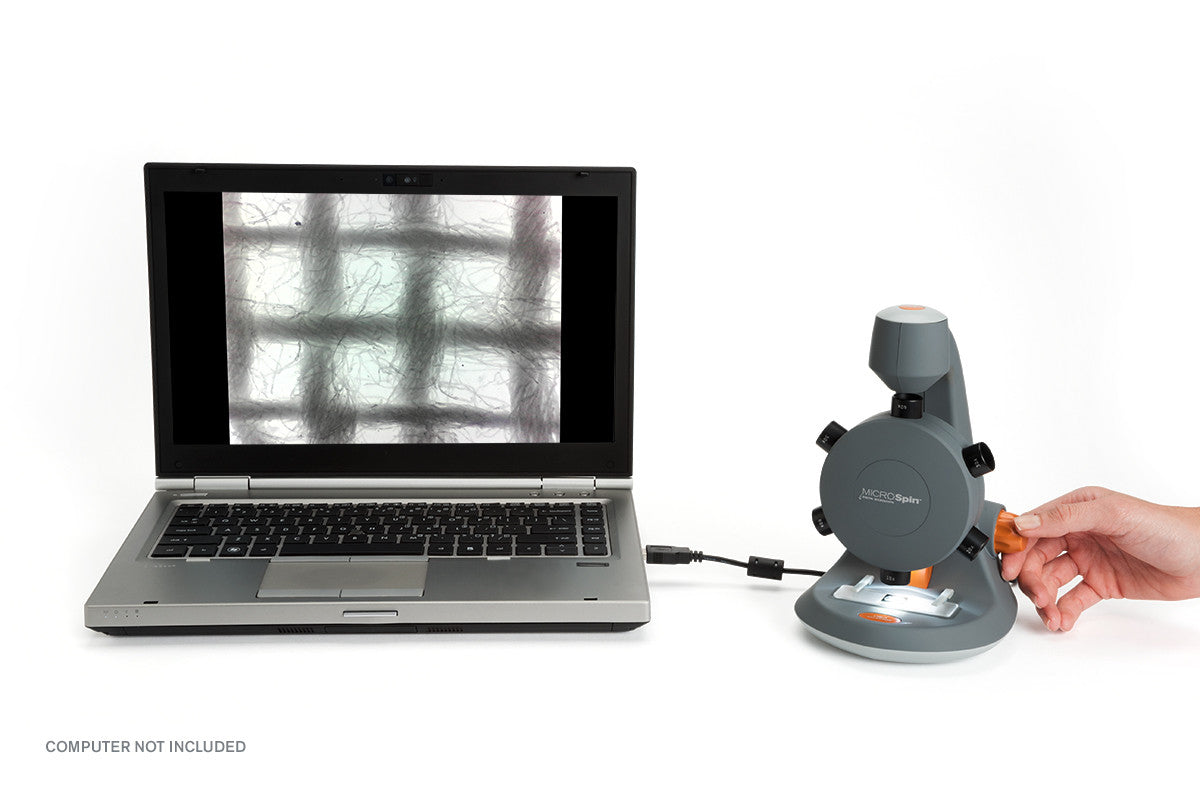

The objective wheel rotates clockwise and counterclockwise, and locates in place at each position, making it easy to change powers. With six magnification powers from 100x up to 600x, this microscope is perfect for students and professionals alike.
Specifications
General | |
---|---|
Type of Microscope: | Digital high powered |
Head: | Fixed Head, no eyepiece tube |
Nosepiece: | Wheel mounted rotational |
Objective(s) Type: | Non-removable barrel objectives |
Objective(s) Magnification: | 100x | 200x | 300x | 400x | 500x | 600x |

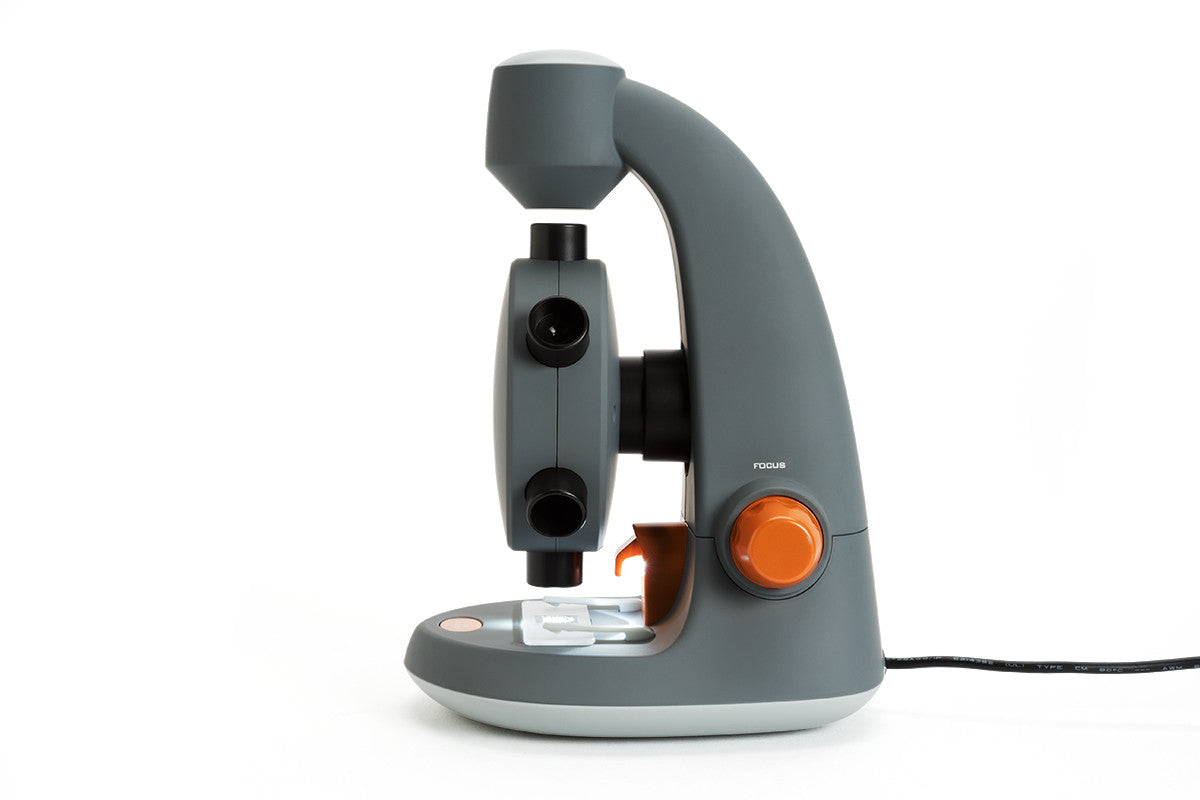

Focus Type(s): | Course Focus |
Magnification Range: | 100X to 600X |
Illumination Type: | Non-adjustable LED, upper and lower bulb |
Illumination Position(s): | TBD |
Power Source: | USB Connection with computer |
Stage: | Simple- non moveable stage with small stage diaphragm and plastic slide clips |
Stage Diaphragm: | 10mm (.39") |
Eyepiece Type: | CMOS Sensor in lieu of eyepiece |
Sensor Size: | 2MP (pixel array: 1600 x 1200) |
Pixel Size: | 1.75 μm |
Screen type: | Screen is your PC |
Screen Size: | Screen is your PC |
Memory Type: | No on-board memory |
Port(s) Out: | 2.0 USB - non-removable cable |
Still image capture resolution: | 1600 x 1200 | 1280 x 720 | 800 x 600 | 320 x 240 |
Video resolution: | VGA 20fps 640 x 480 | QVGA 320 x 240 |

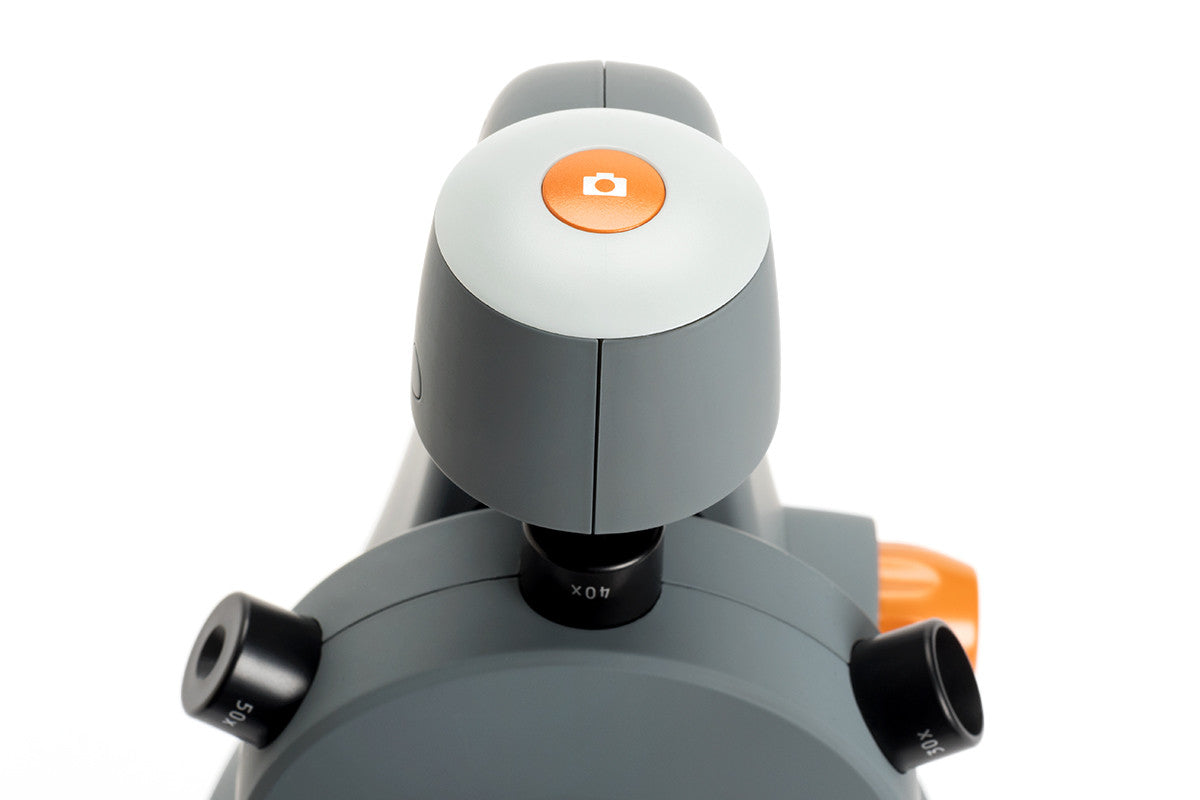

Shutter trigger position: | On stage front |
Software: | Microspin2 Digital Microscope Capture Software included |
Software compatibility: | Windows: 10/7/XP/Vista | Mac: OSX 10.4.8- 10.11 |
Microscope Dimensions: | 208mm x 130mm x 153mm (8.19" x 5.12" x 6.02") |
Microscope Weight: | 0.77 lbs (350 g) |

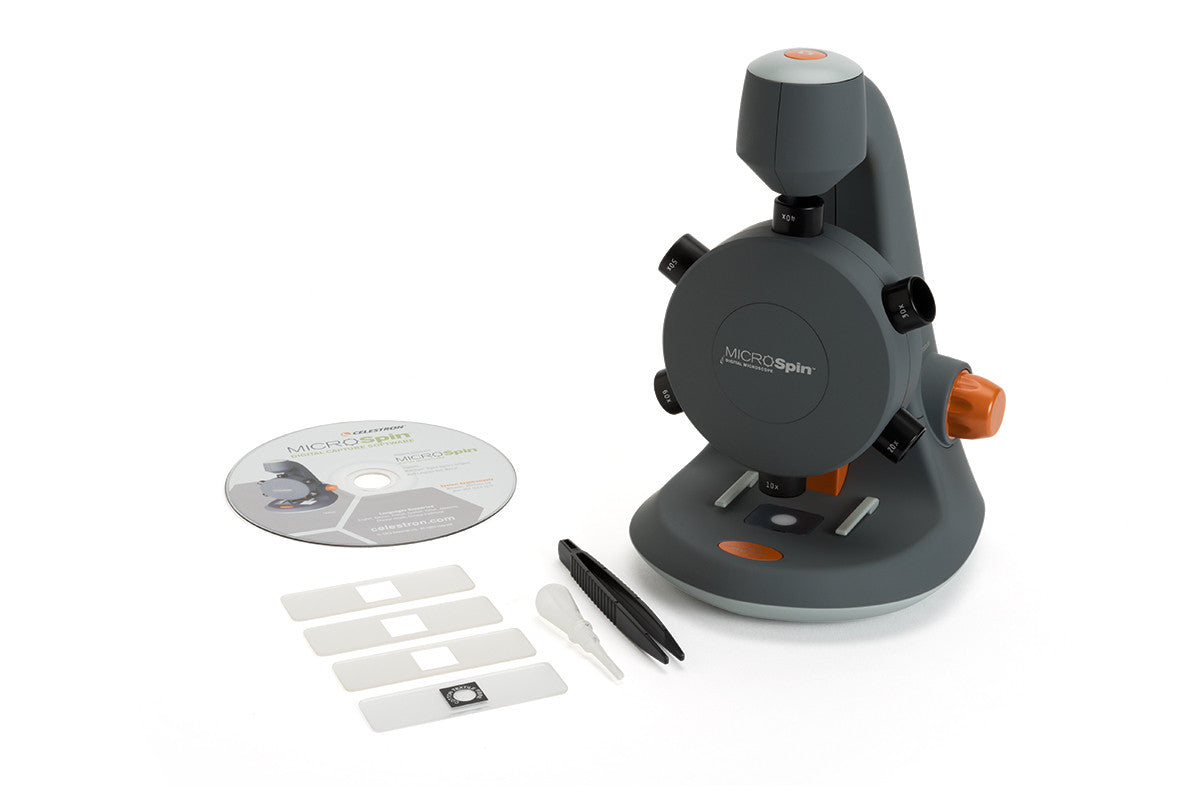

Included Items: | (1) Prepared slide | (3) Blank slides | (3) Slide covers | Pair of Tweezers | Eye dropper | CD/DVD ROM software and Manual | Quick Setup Guide |

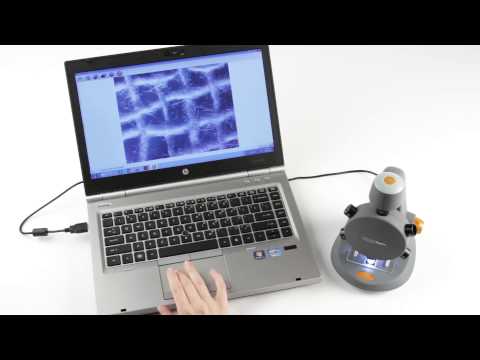

Videos
