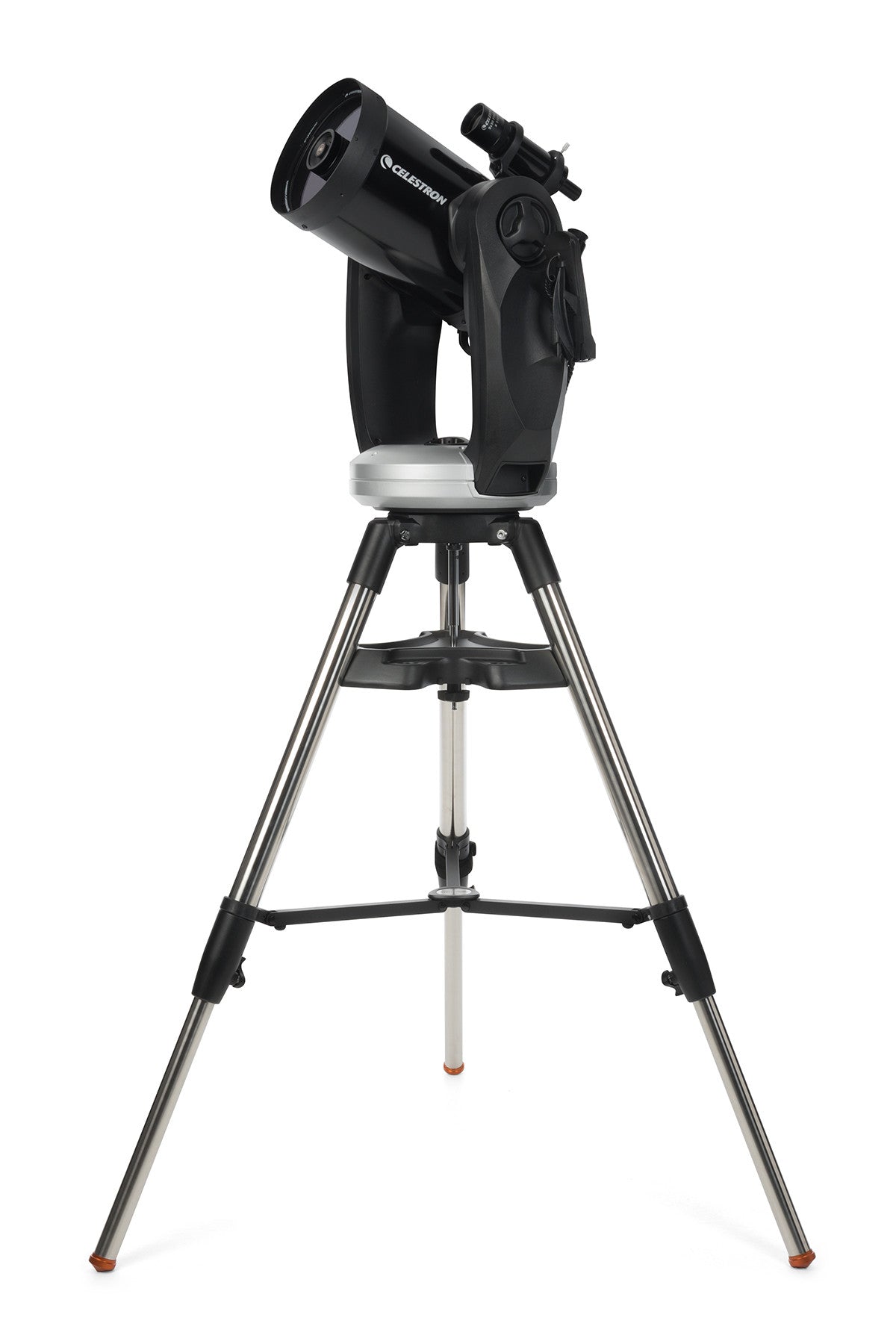

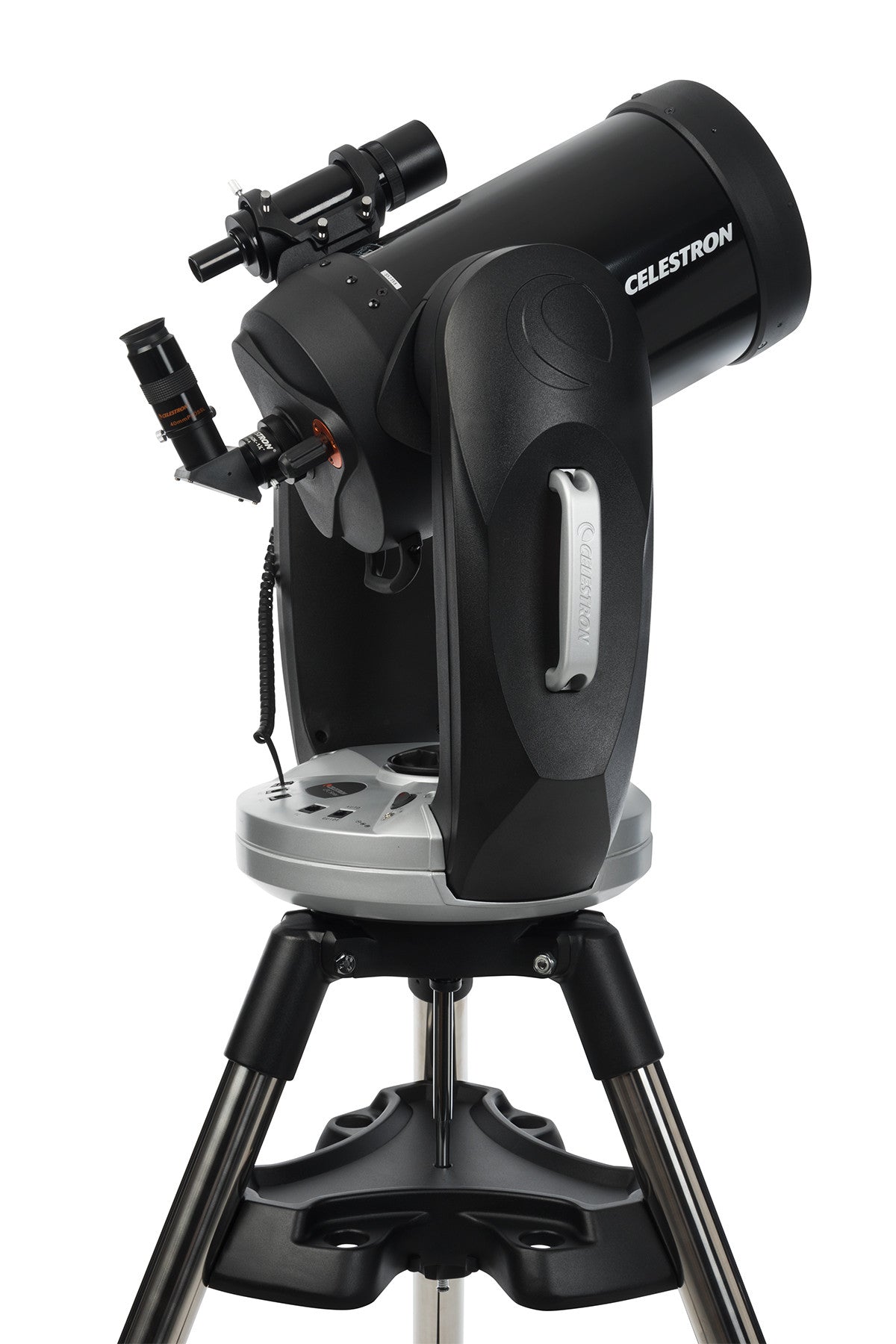

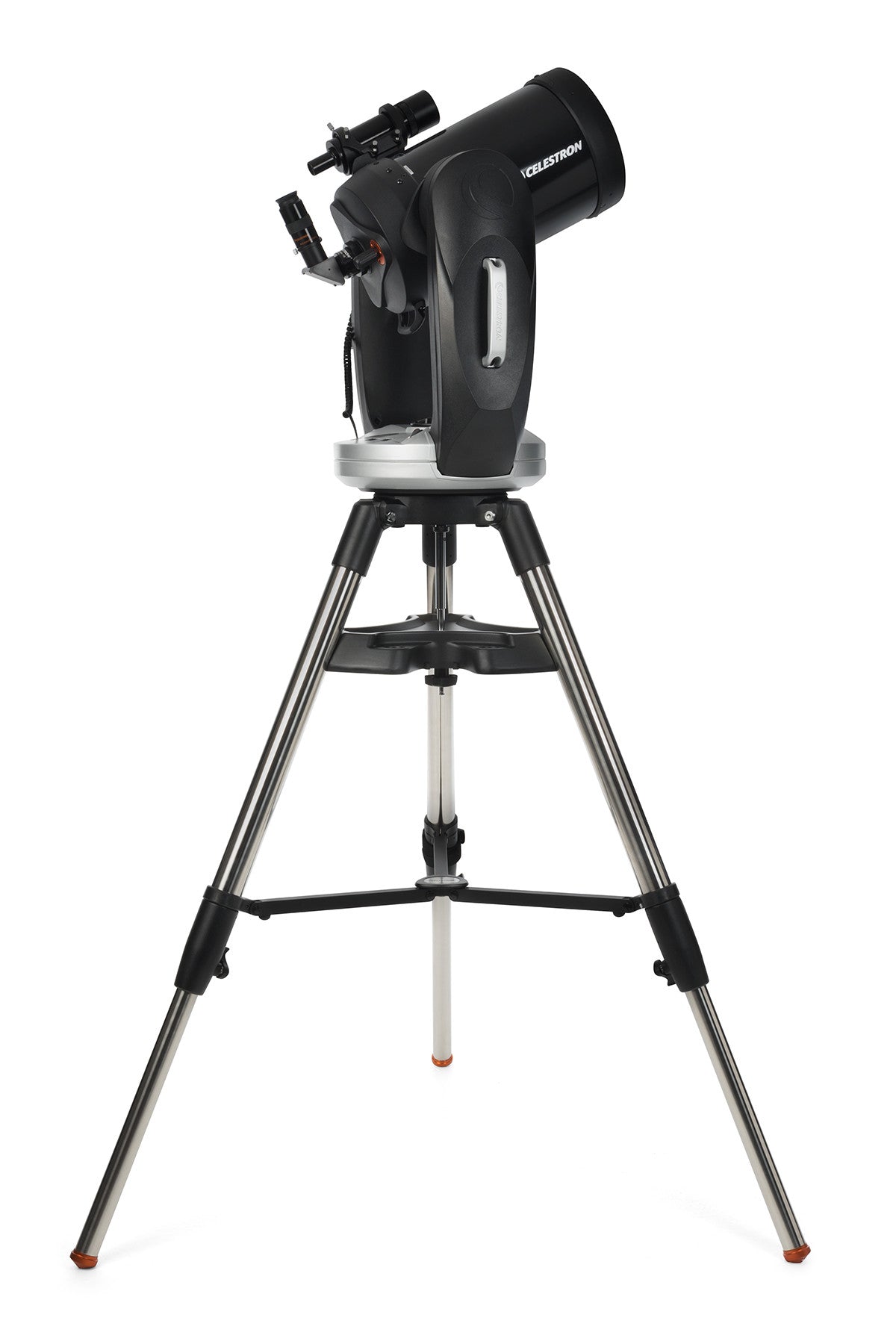

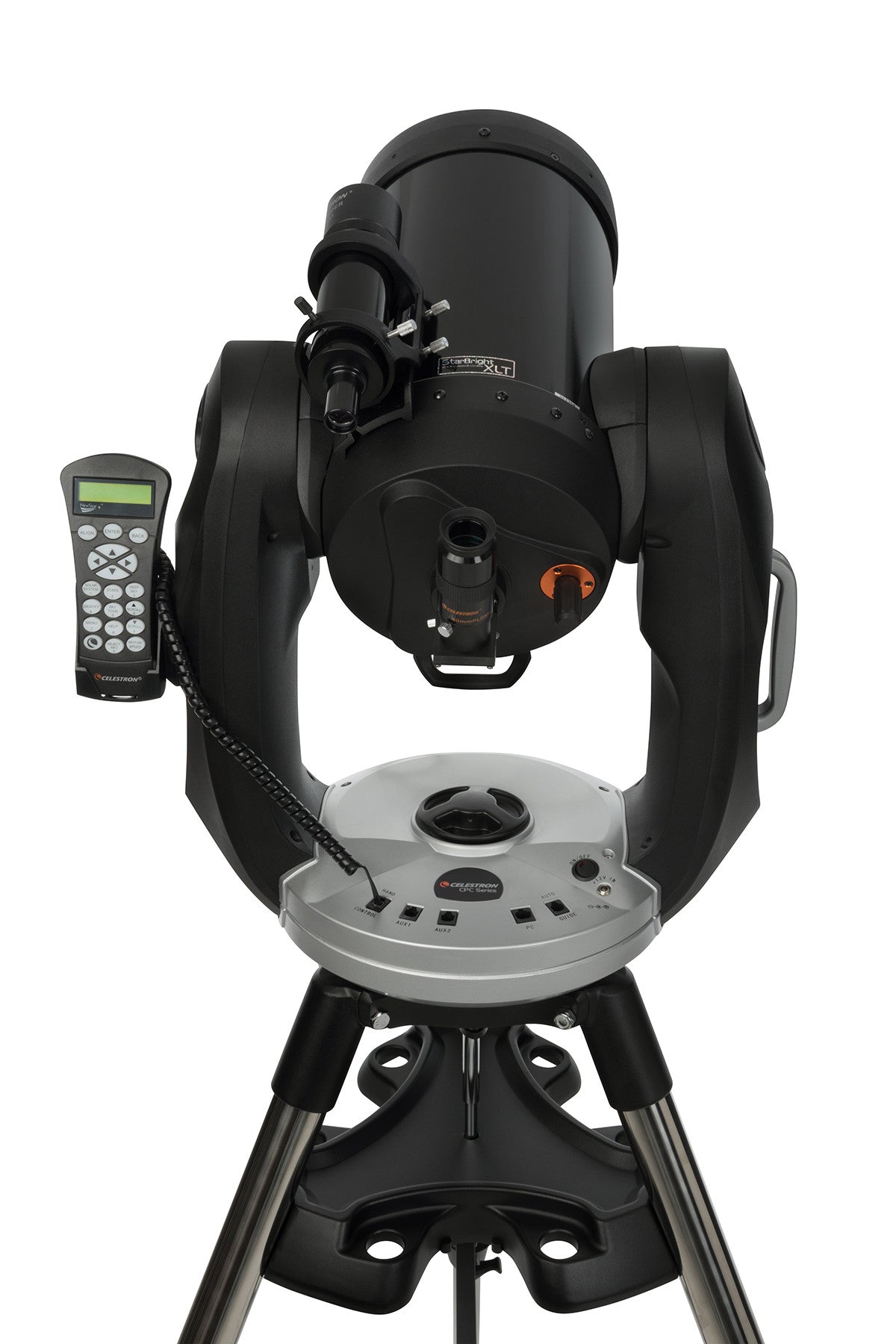

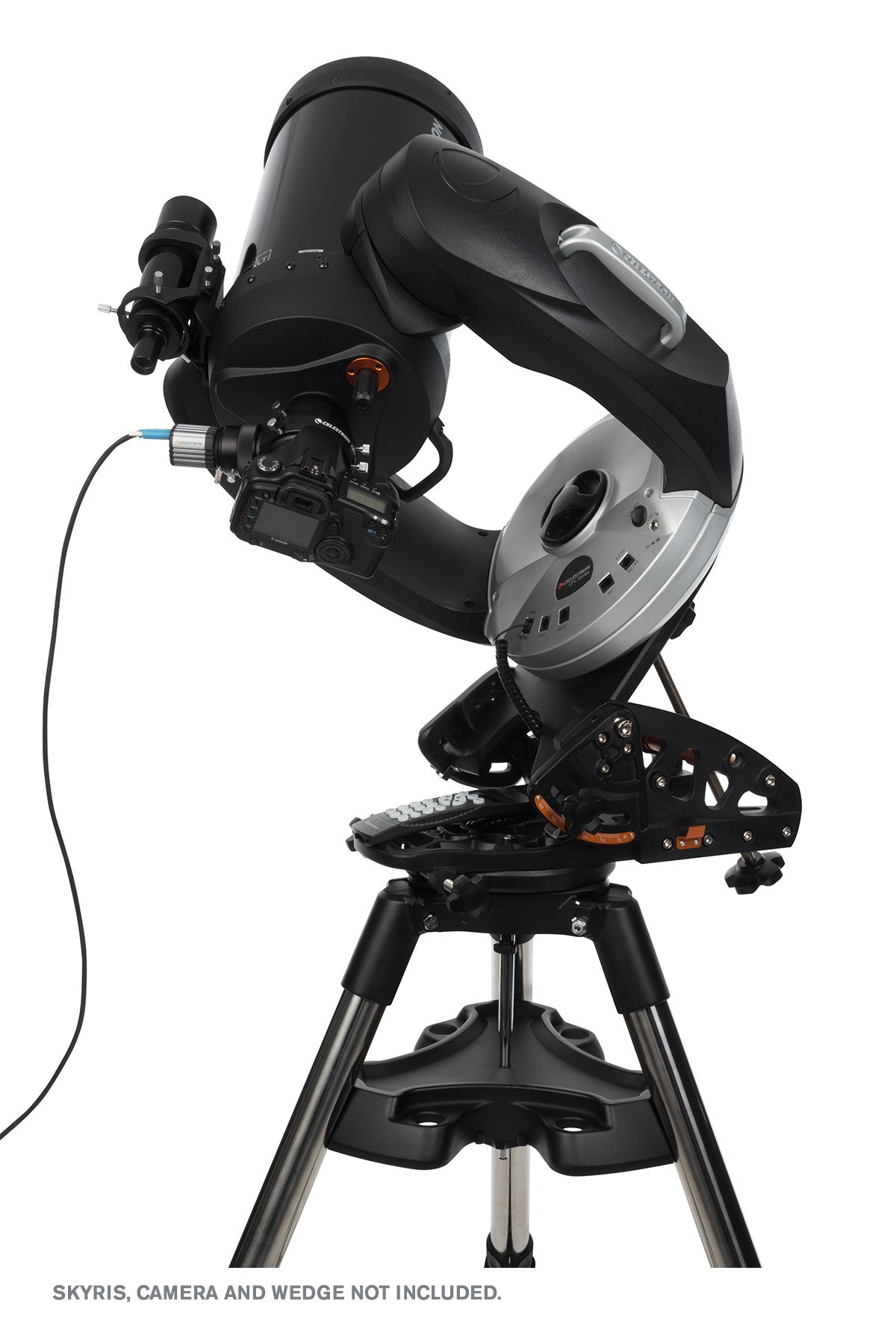

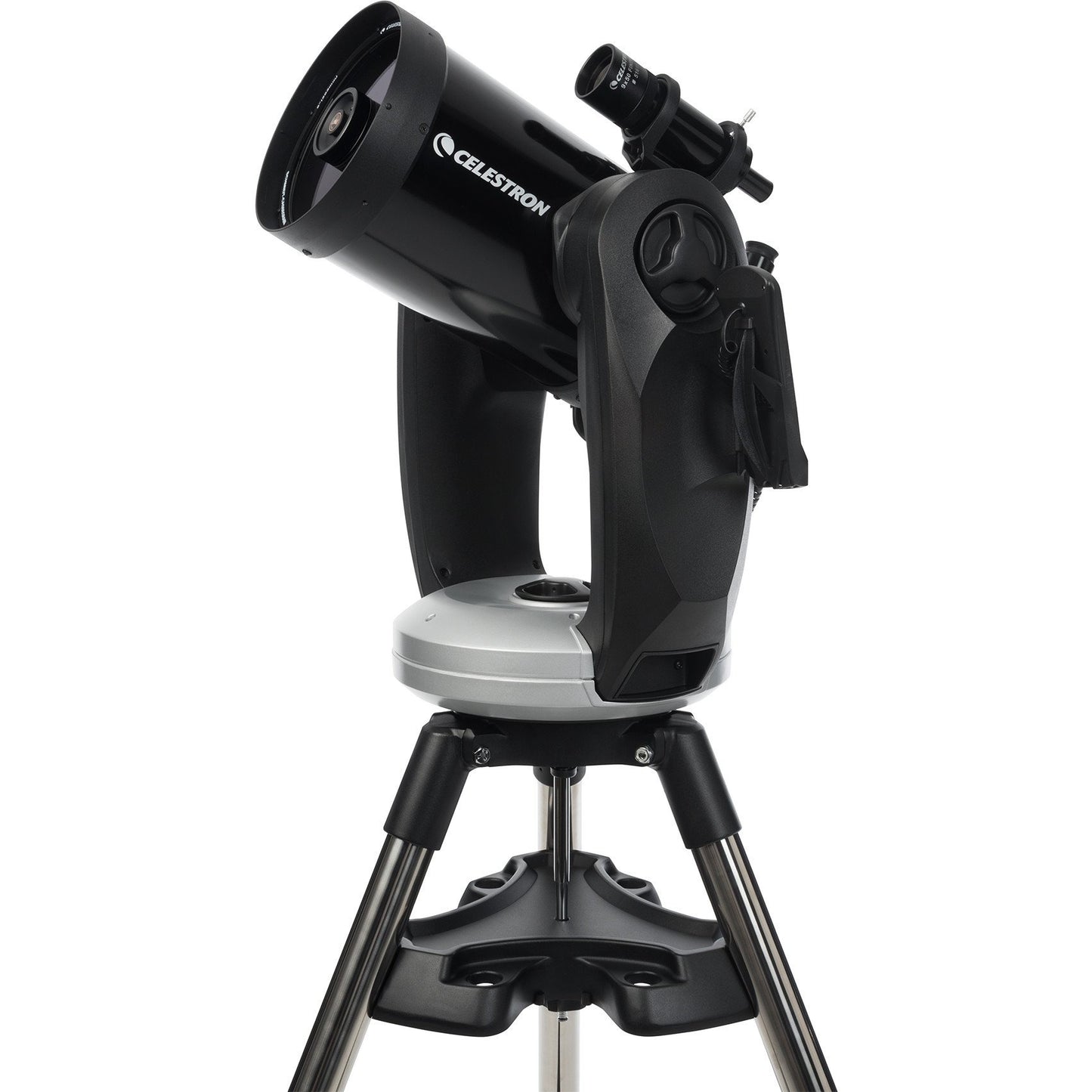

CPC 800 GPS (XLT) Computerized Telescope
Item #: 11073-XLT / 11073-XLT-CGL
Warranty: 2 Years

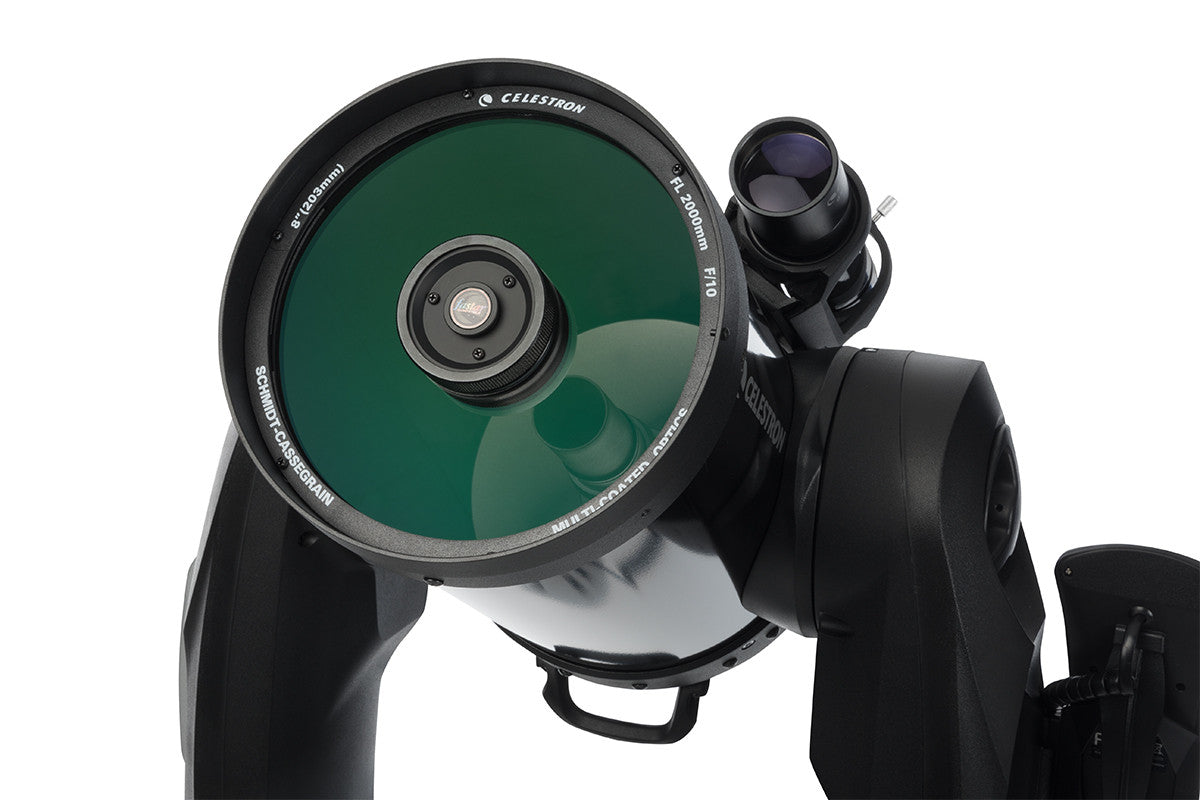

- 8" diffraction limited Schmidt-Cassegrain telescope
- Celestron's premium StarBright XLT coatings
- Fully computerized dual fork arm Altazimuth mount
- 9x50 finderscope to help accurately find objects
- Newly designed heavy-duty tripod makes attaching the telescope so easy you can do it in the dark; also features sturdy 2" steel legs and accessory tray
- Ergonomic design - Comfortably lift and move the telescope from location to location
- Star diagonal provides more comfortable viewing position when observing objects that are high in the sky
- Convenient remote hand control holder - Allows you to view information hands-free while using the scope
Overview
- 8" diffraction limited Schmidt-Cassegrain telescope
- Celestron's premium StarBright XLT coatings
- Fully computerized dual fork arm Altazimuth mount
- 9x50 finderscope to help accurately find objects
- Newly designed heavy-duty tripod makes attaching the telescope so easy you can do it in the dark; also features sturdy 2" steel legs and accessory tray
- Ergonomic design - Comfortably lift and move the telescope from location to location
- Star diagonal provides more comfortable viewing position when observing objects that are high in the sky
- Convenient remote hand control holder - Allows you to view information hands-free while using the scope
Includes These Celestron Technologies
Compatible With
Customers Also Purchased
Description
General Features
- 8" diffraction limited Schmidt-Cassegrain telescope
- Celestron's premium StarBright XLT coatings
- Fully computerized dual fork arm Altazimuth mount
- 9x50 finderscope to help accurately find objects
- Newly designed heavy-duty tripod makes attaching the telescope so easy you can do it in the dark; also features sturdy 2" steel legs and accessory tray
- Ergonomic design - Comfortably lift and move the telescope from location to location
- Star diagonal provides more comfortable viewing position when observing objects that are high in the sky
- Convenient remote hand control holder - Allows you to view information hands-free while using the scope
Technology
Computerized Mount Features
- Proven NexStar computer control technology
- 40,000 object database with over 100 user-definable objects and expanded information on over 200 objects
- Custom database lists of all the most famous deep-sky objects by name and catalog number; the most beautiful double, triple and quadruple stars; variable stars; solar system objects and asterisms
- Re-designed drive base and drive mechanics - Quiet operation; large drive gears, quick release clutch
- SkyAlign allows you to align on any three bright celestial objects, making for a fast and easy alignment process
- Flash upgradeable hand control software and motor control units for downloading product updates over the Internet
- Permanent PEC
- Auxiliary port for additional accessories such as Autoguider, GPS accessory
- NexRemote telescope control software and RS-232 cable included for advanced control of your telescope via computer
Specifications
| Optical Tube Info: | |
|---|---|
| Optical Design: | Schmidt-Cassegrain |
| Aperture: | 203.2mm (8") |
| Focal Length: | 2032mm (80") |
| Focal Ratio: | f/10 |
| Focal Length of Eyepiece 1: | 40mm (1.57") |
| Magnification of Eyepiece 1: | 51x |
| Finderscope: | 9x50 Finderscope with quick release bracket |
| Star Diagonal: | 1.25" Star Diagonal |
| Optical Tube: | Aluminum |
| Highest Useful Magnification: | 480x |
| Lowest Useful Magnification: | 29x |
| Limiting Stellar Magnitude: | 14 |
| Resolution (Rayleigh): | 0.69 arc seconds |
| Resolution (Dawes): | 0.57 arc seconds |
| Light Gathering Power (Compared to human eye): | 843x |
| Secondary Mirror Obstruction: | 64mm (2.5") |
| Secondary Mirror Obstruction by Diameter: | 31% |
| Secondary Mirror Obstruction by Area: | 9.77% |
| Optical Coatings: | Starbright XLT |
| Optical Tube Length: | 432mm (17") |
| Optical Tube Diameter: | 238mm (9.37") |
| Optical Tube Weight: | 42 lbs (19.1 kg) with mount |
| Dovetail: | None |
| Mount Info: | |
| Mount Type: | Computerized Altitude-Azimuth Dual Fork Arm |
| Height adjustment range (includes mount and tripod): | 1295.4mm - 1422.4mm (51" - 66") |
| Tripod leg diameter: | 50.8mm (2") Stainless Steel |
| Mount Head Weight: | 42 lbs (19.1 kg) with optical tube |
| Accessory Tray: | Yes |
| Tripod Weight: | 19 lbs (8.6 kg) |
| Slew Speed: | 9 slew speeds - max speed 5°/second |
| Tracking Rates: | Sidereal, Solar and Lunar |

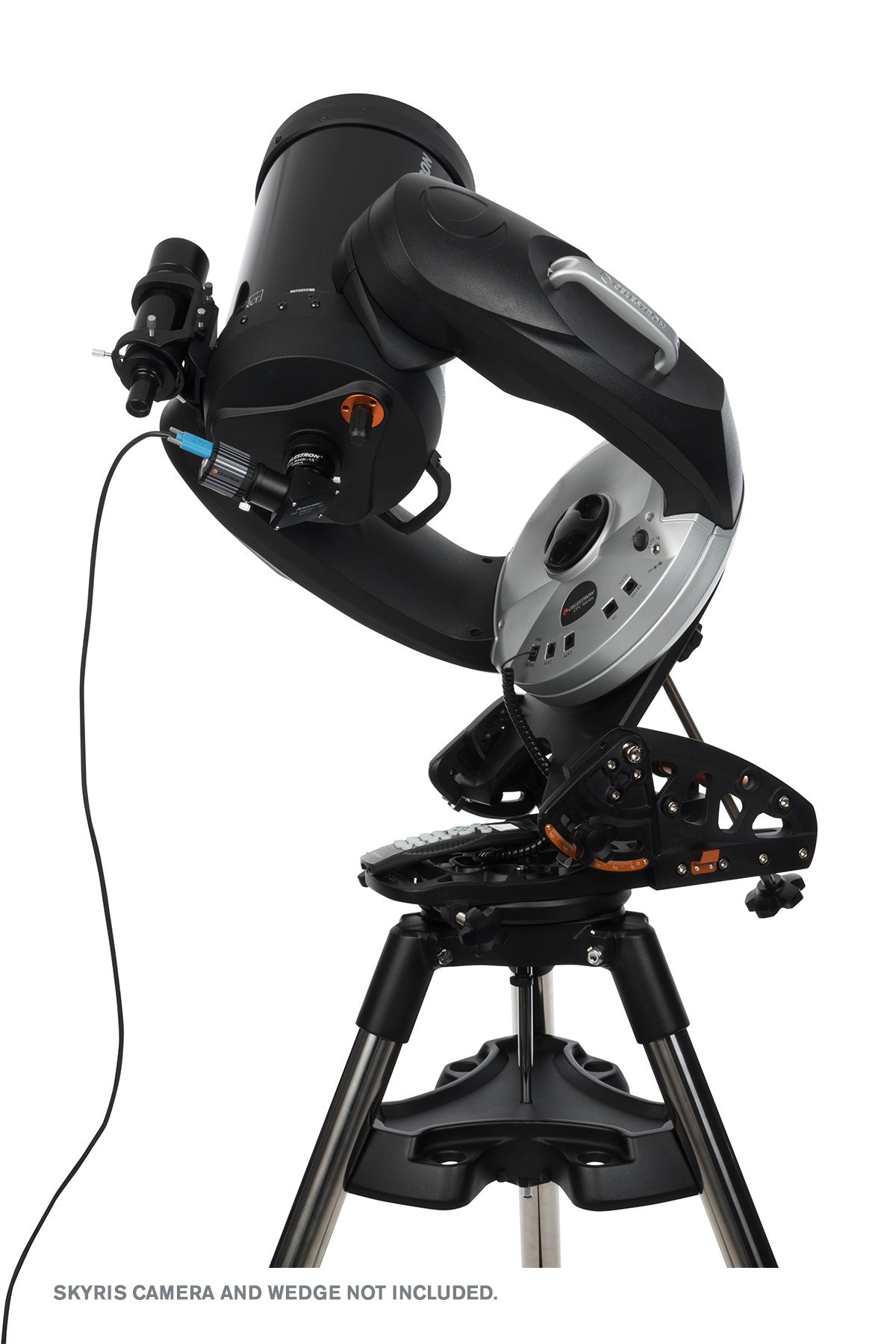

| Tracking Modes: | Altazimuth, EQ North and EQ South |
| GPS: | Internal 16 channel |
| Dovetail Compatibility: | none |

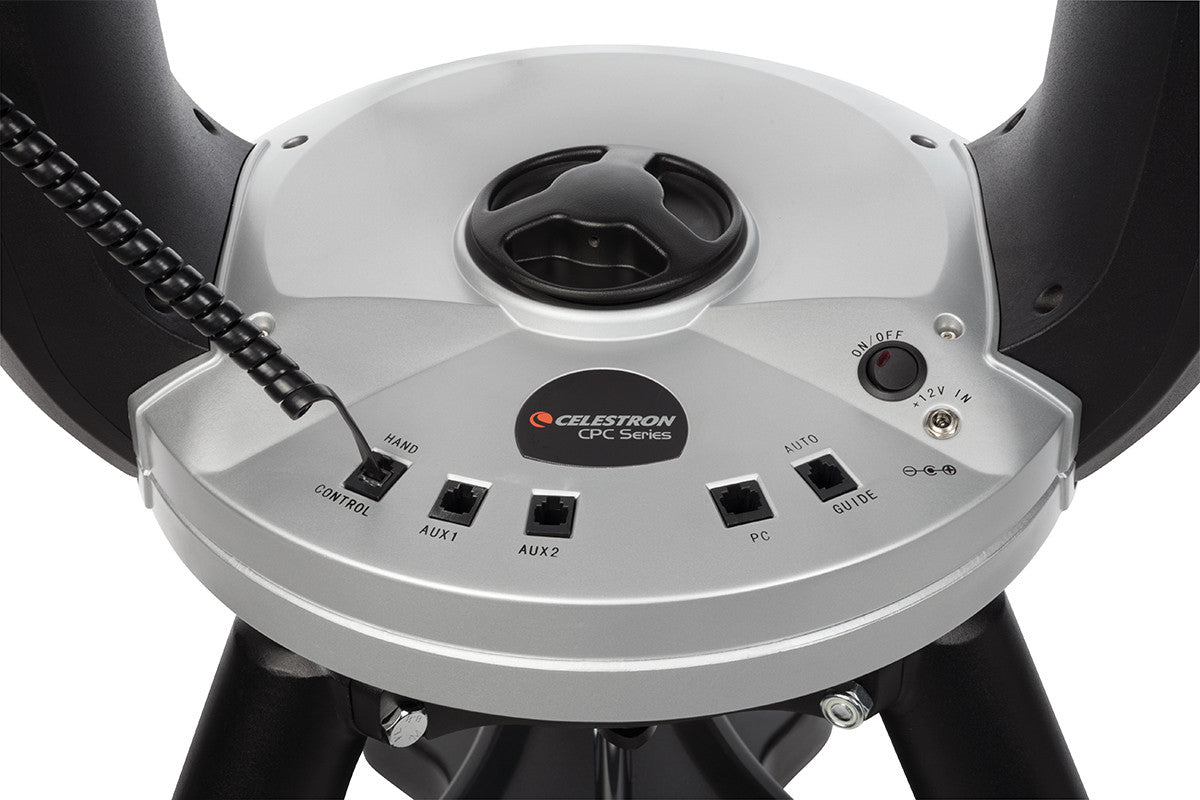

| Number of Auxiliary Ports: | 2 AUX Ports (Hand Control can use any of the AUX Ports) |
| Autoguide Port: | Yes |
| USB Port: | Yes, on hand control |
| Power Requirements: | 12 VDC-1.5A (Tip positive) |
| Motor Drive: | DC servo motors |
| Alignment Procedures: | Sky Align, Auto Two-Star Align, Two-Star Align, Solar System Align, EQ North Align and EQ South Align |
| Periodic Error Correction: | Yes |

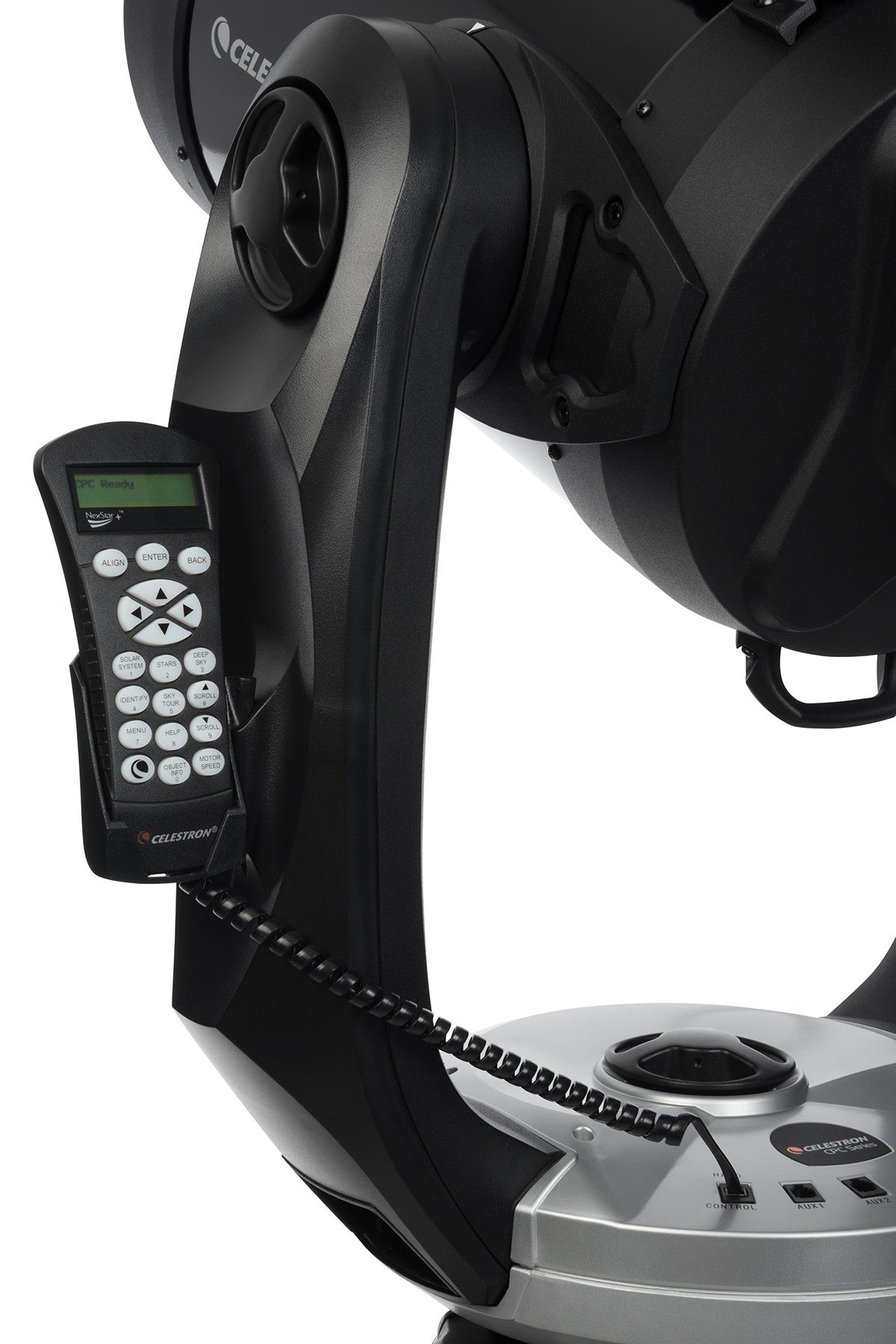

| Computerized Hand Control: | 2 line x 18 character backlit Liquid Crystal Display, 19 LED backlit buttons, USB 2.0 Port for PC connection |
| NexStar+ Database: | 40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects |
| Software: | Celestron Starry Night Special Edition Software and SkyPortal App |
| Total Telescope Kit Weight: | 61 lbs (27.6 kg) |
| Included Items: |

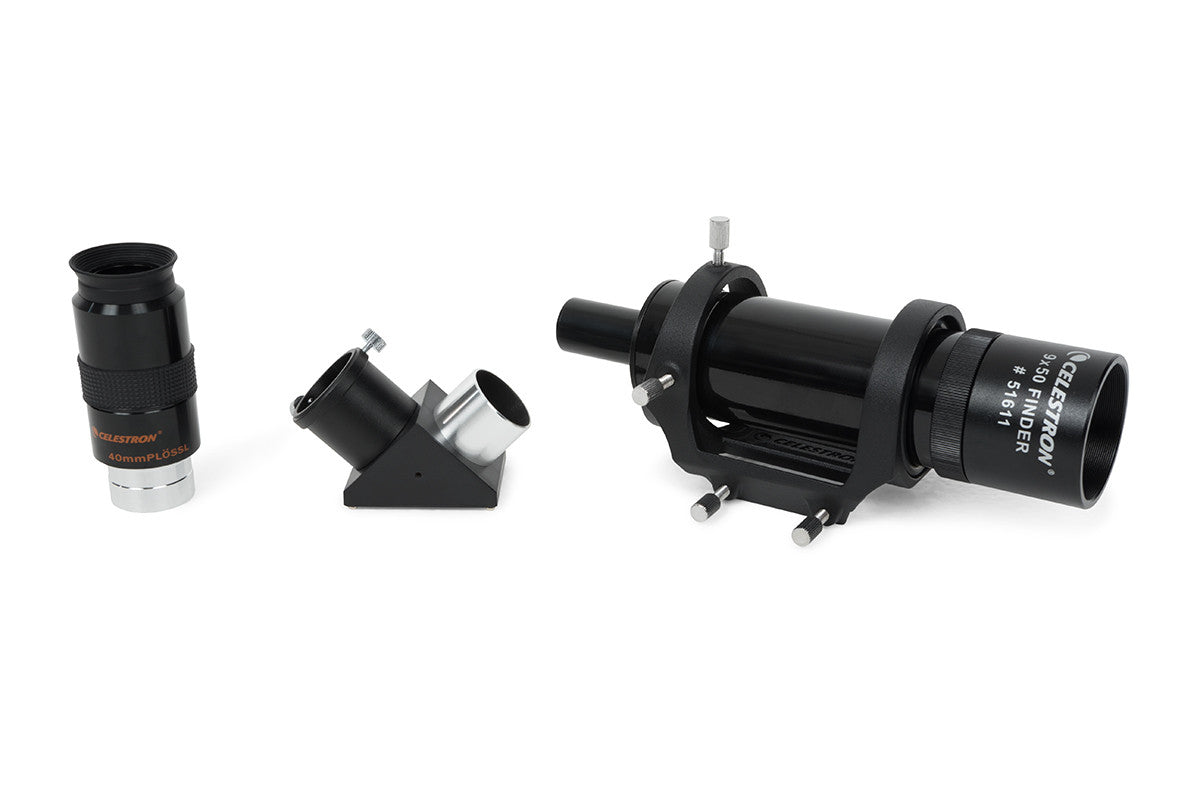

Optical tube Mount and Tripod Accessory Tray 40mm eyepiece 1.25" Star Diagonal 50mm 9x50 Finderscope with Bracket Instruction Manual |
Videos
Accessories
TOP
SELLER
SELLER
TOP
SELLER
SELLER
TOP
SELLER
SELLER
TOP
SELLER
SELLER
TOP
SELLER
SELLER
TOP
SELLER
SELLER
TOP
SELLER
SELLER
NEW
TOP
SELLER
SELLER
NEW
NEW
TOP
SELLER
SELLER
NEW
NEW
TOP
SELLER
SELLER
NEW
NEW
NEW
NEW
NEW
FAQ
Q:
What is the heaviest recommend load for mounting a camera in the Fastar / HyperStar configuraton?
A:
We recommend a load of no more than 20 lbs. at 4.5 inches away from the 8" Schmidt corrector.
