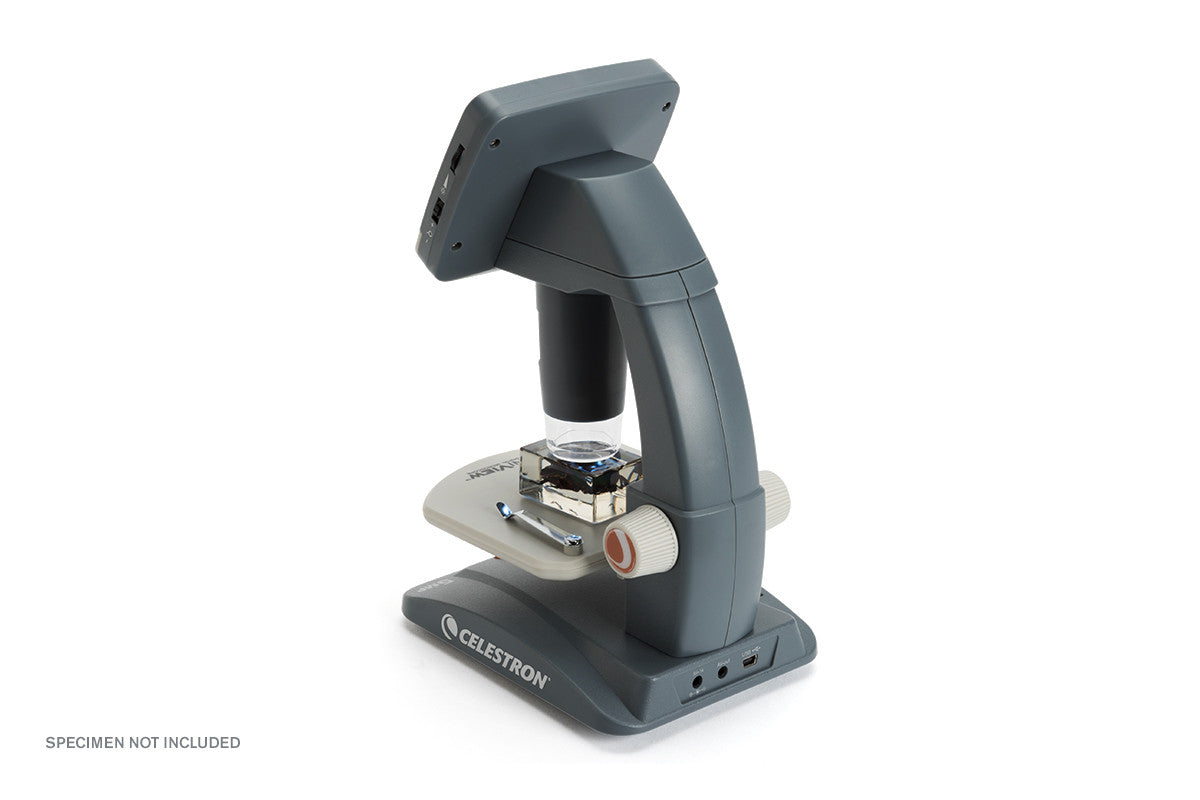

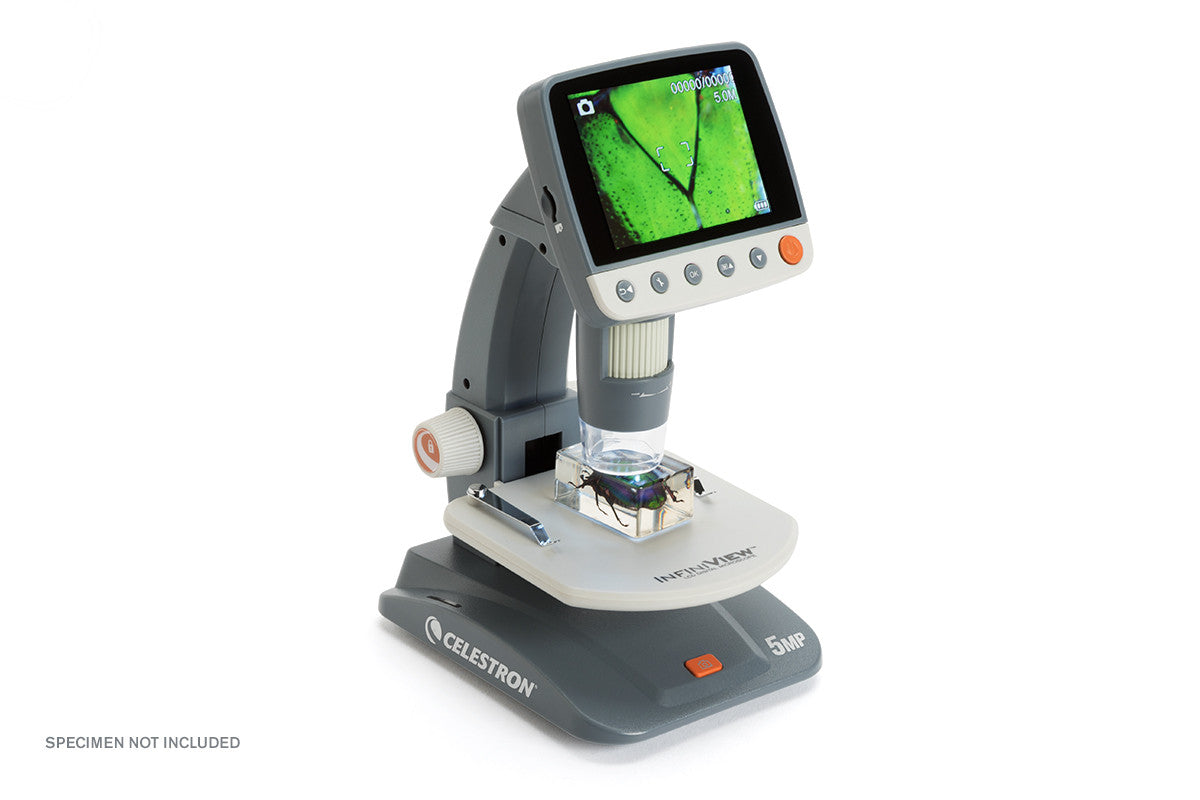

Infiniview LCD Digital Microscope
Item #: 44360
Warranty: 2 Years
- Built-in 5MP digital camera captures and saves high-resolution images of your specimens
- Full-color 3.5” LCD screen and rechargeable lithium-ion battery for use in the field
- High-quality 5-element IR cut glass lens ensures sharper images
- 4x to 160x magnification using LCD screen, up to 200x using computer monitor
- 4x digital zoom
- Adjustable stage for viewing different sized subjects
- TV out for display in a classroom or lab
- Downloadable computer software option with measuring feature
- Shutter trigger on base to ensure sharp images
- Connect via USB to both Windows and Mac systems
- Accessories Included: AV cable, calibration ruler, AC adapter/charger, USB 2.0 cable
Overview
- Built-in 5MP digital camera captures and saves high-resolution images of your specimens
- Full-color 3.5” LCD screen and rechargeable lithium-ion battery for use in the field
- High-quality 5-element IR cut glass lens ensures sharper images
- 4x to 160x magnification using LCD screen, up to 200x using computer monitor
- 4x digital zoom
- Adjustable stage for viewing different sized subjects
- TV out for display in a classroom or lab
- Downloadable computer software option with measuring feature
- Shutter trigger on base to ensure sharp images
- Connect via USB to both Windows and Mac systems
- Accessories Included: AV cable, calibration ruler, AC adapter/charger, USB 2.0 cable
Customers Also Purchased
Description

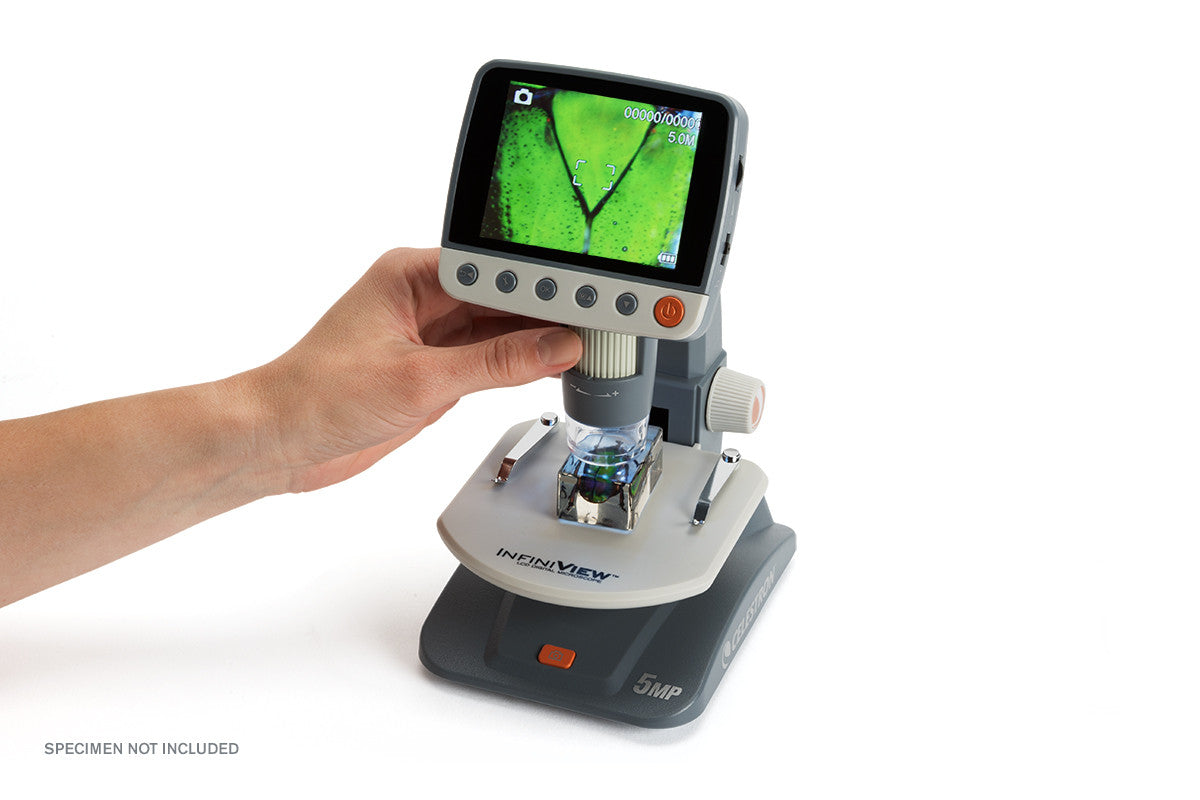

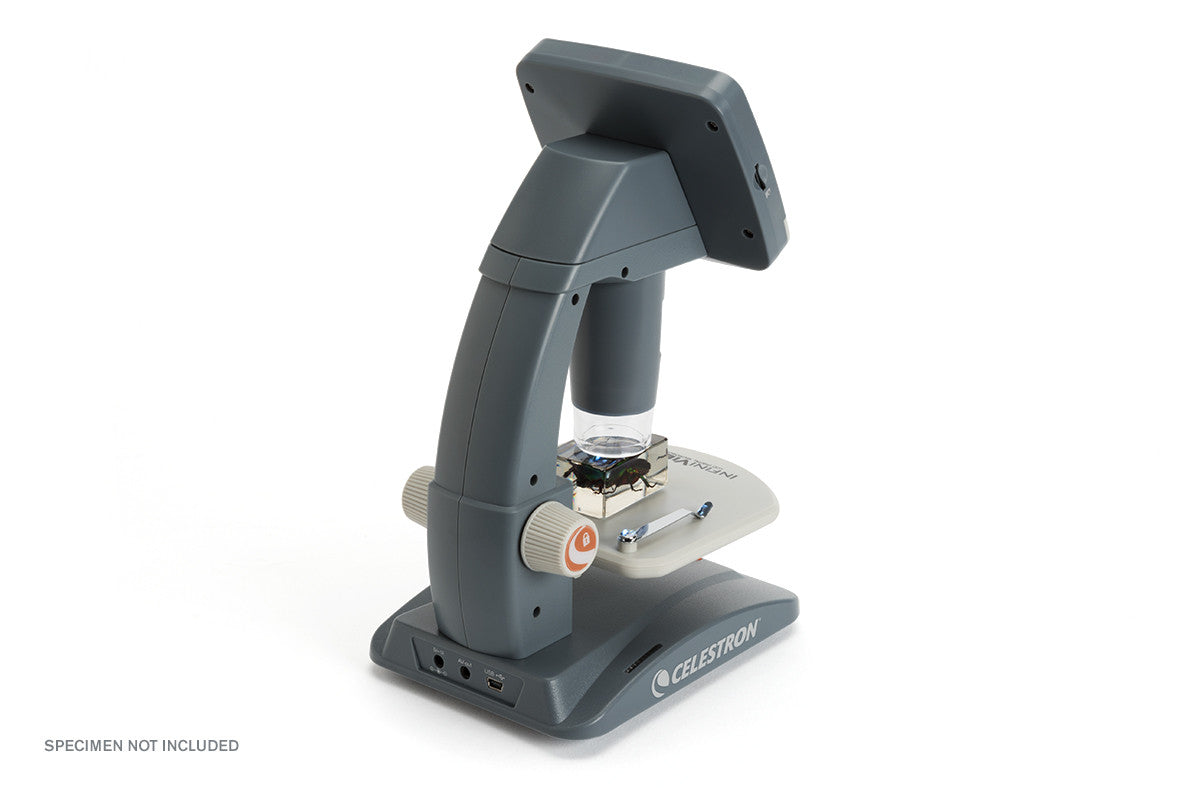

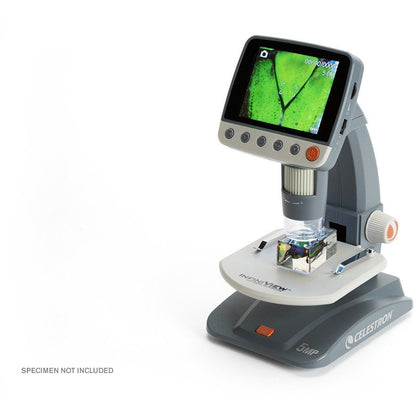

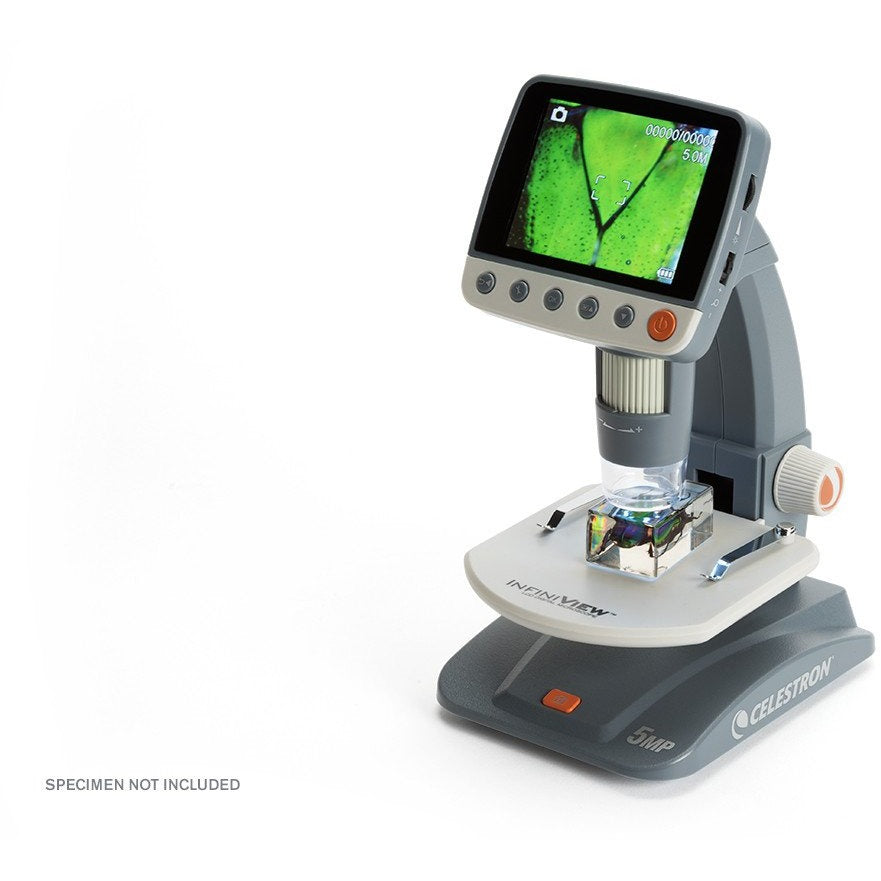

The Infiniview LCD Digital Microscope is a versatile tool that's just as useful out in the field as it is in a classroom. Infiniview comes with a 3.5" LCD screen and rechargeable Lithium Ion battery that will last up to 2 hours in the field. You'll be able to capture photos using Infiniview's true 5MP digital camera, and even record short video clips of your specimens. Infiniview includes downloadable Celestron's Capture Pro software for use with your PC, and a TV output so you can view the microscope's display on any screen.
Features
-

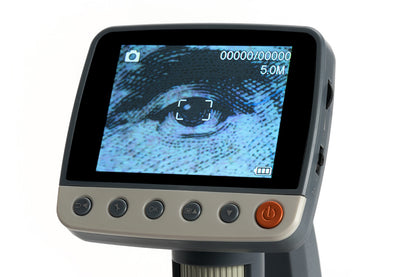

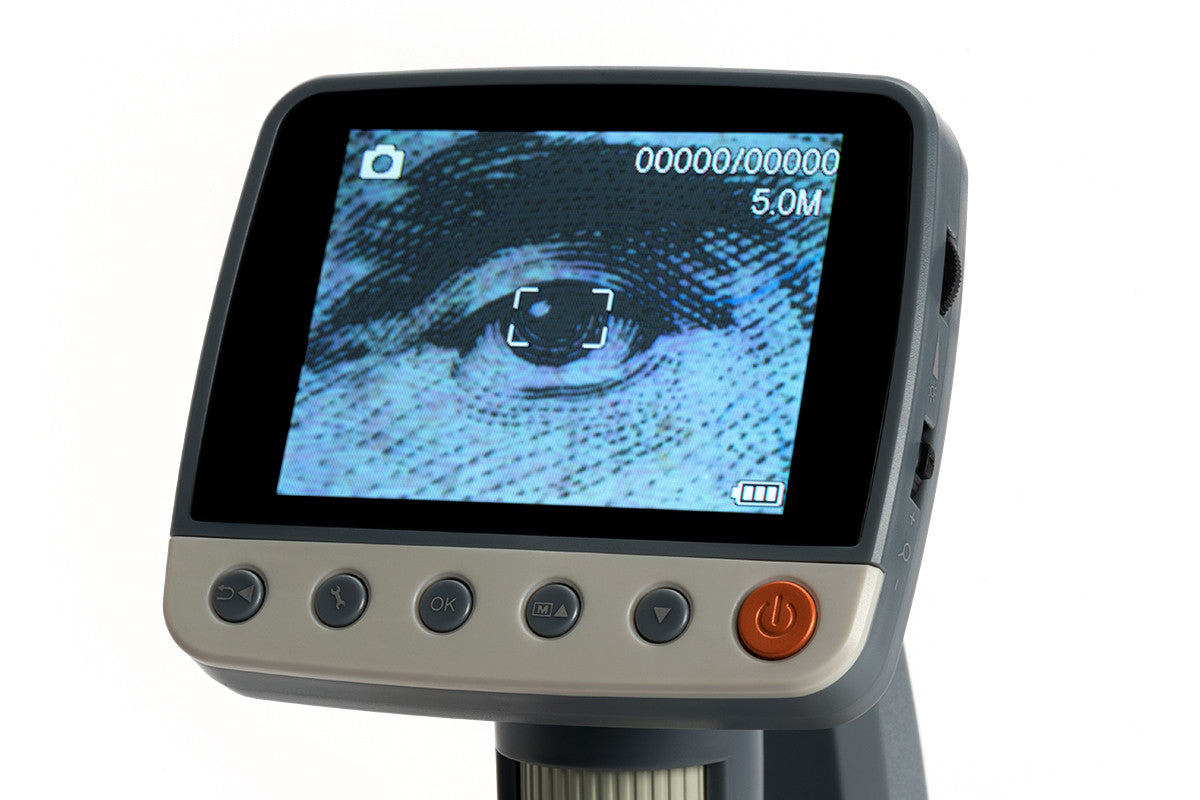

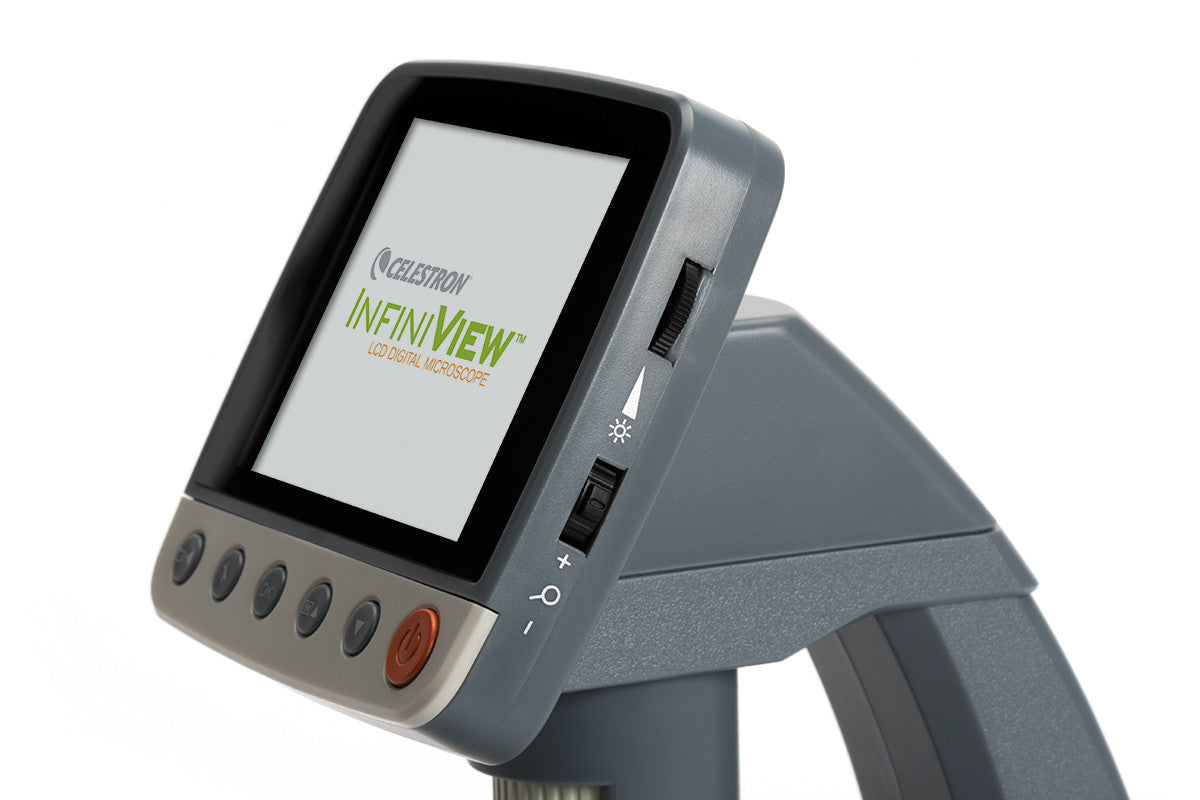

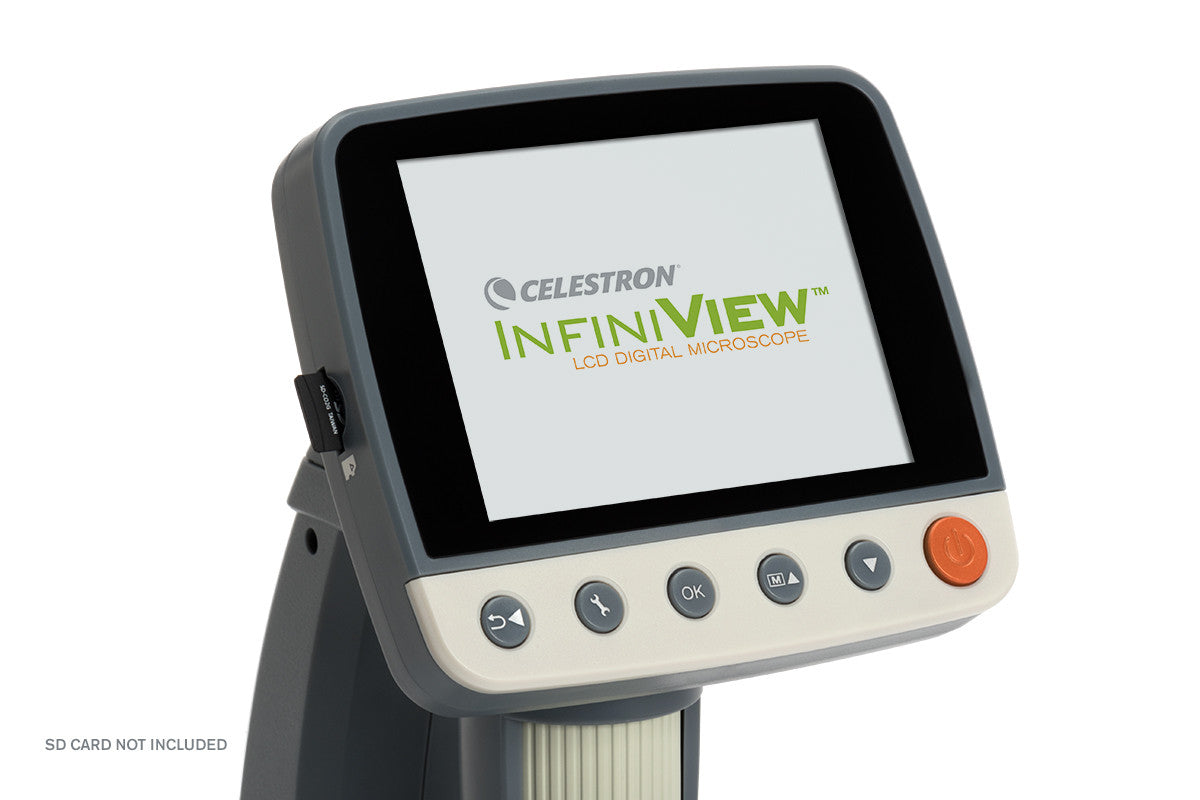

LCD Screen
Full color 3.5" TFT LCD screen with onboard software. -
Portability
Rechargeable Lithium-Ion battery lets you to take Infiniview anywhere - you're no longer tethered to a wall outlet or your PC.
-

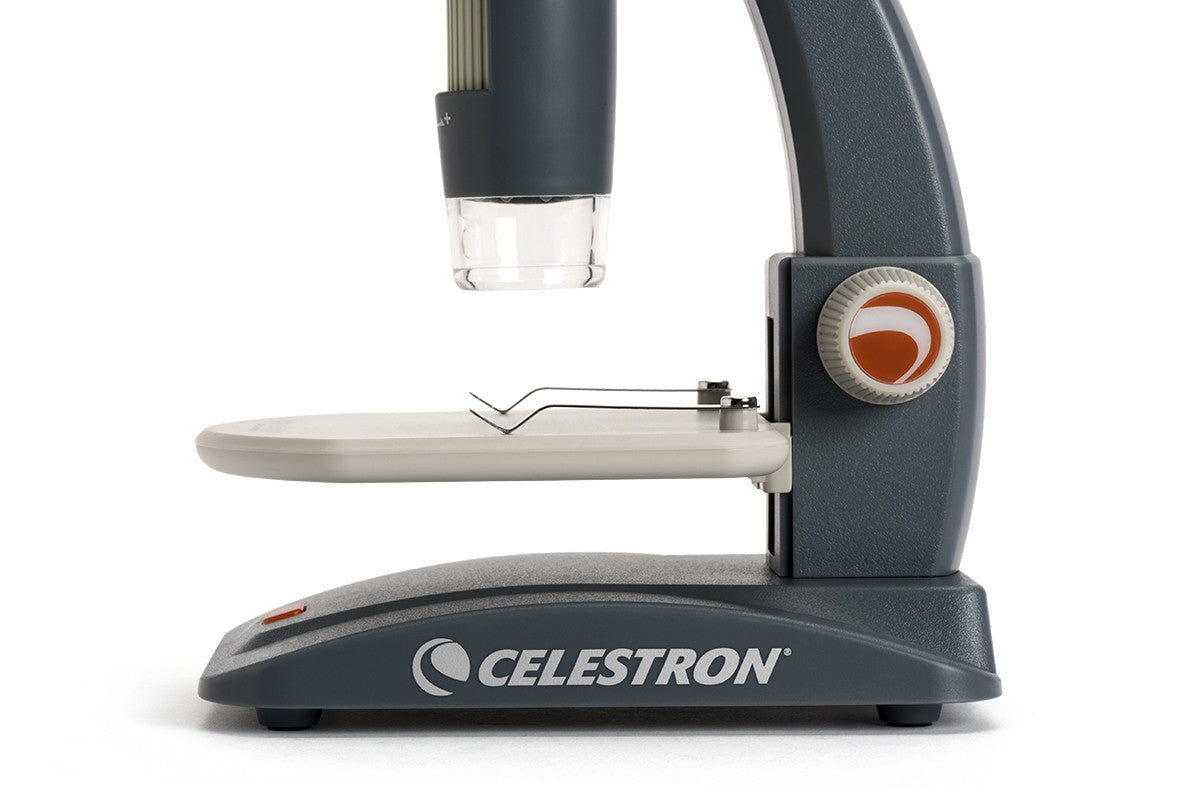

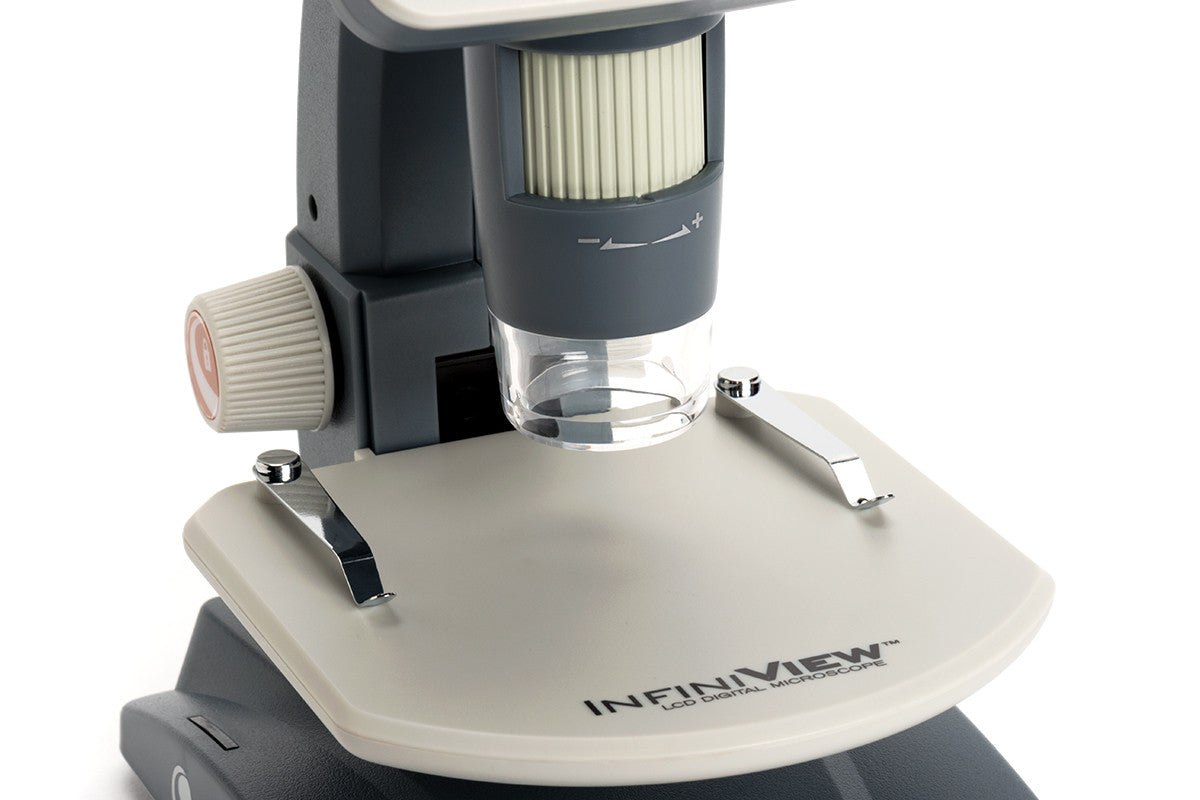

Magnification
4x to 160x powers, great for low-power observation of 3D specimens. Adjustable stage makes looking at different sized objects easier. -
Capture Stills and Videos

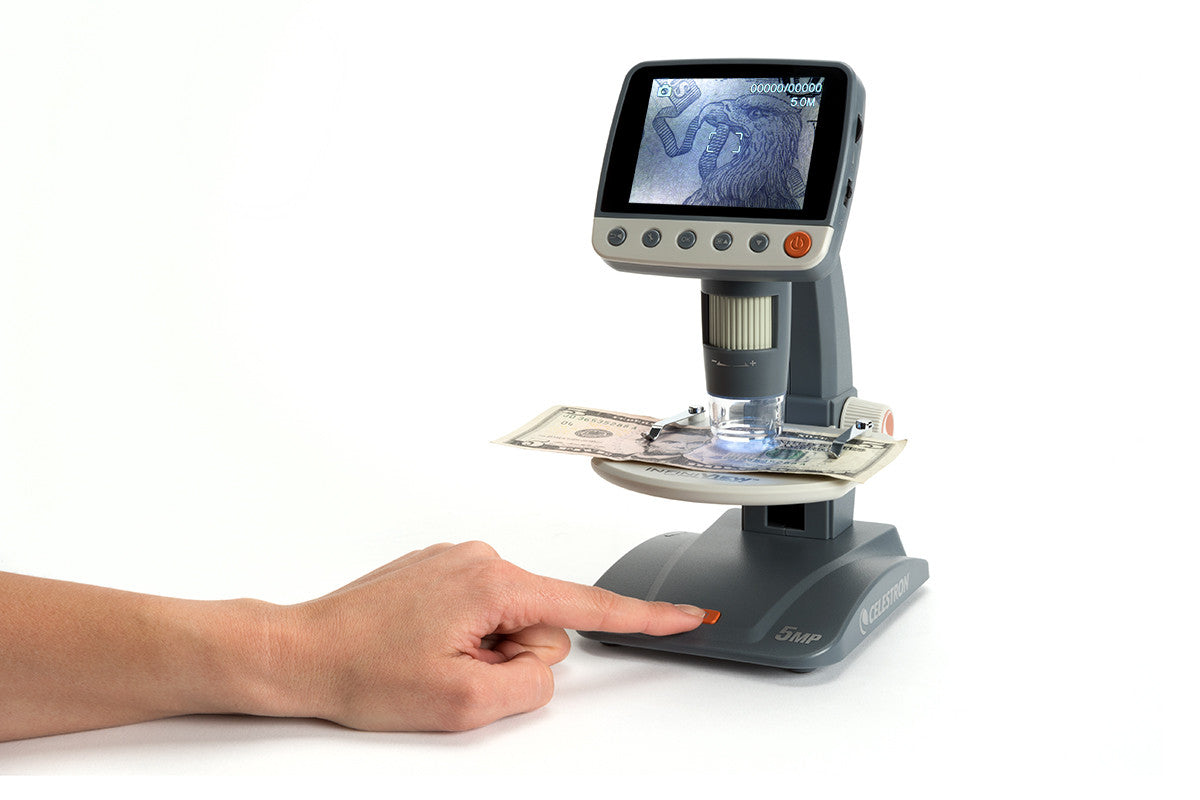

Once you’ve set up a perfect shot, the Infiniview’s built-in 5 Mega Pixel sensor helps you take a vibrant, high resolution photo of what you see on the screen. The shutter trigger is located on the base of the unit, so you can avoid disturbing your shot when pressing the button. Infiniview also records short video of your microscopic discoveries. -
TV Output
Use the included AV cable with an external monitor, projector, or TV screen. Perfect for use in a classroom. -
Connect to your PC
Infiniview easily connects to both Windows and Mac systems and includes software for both.

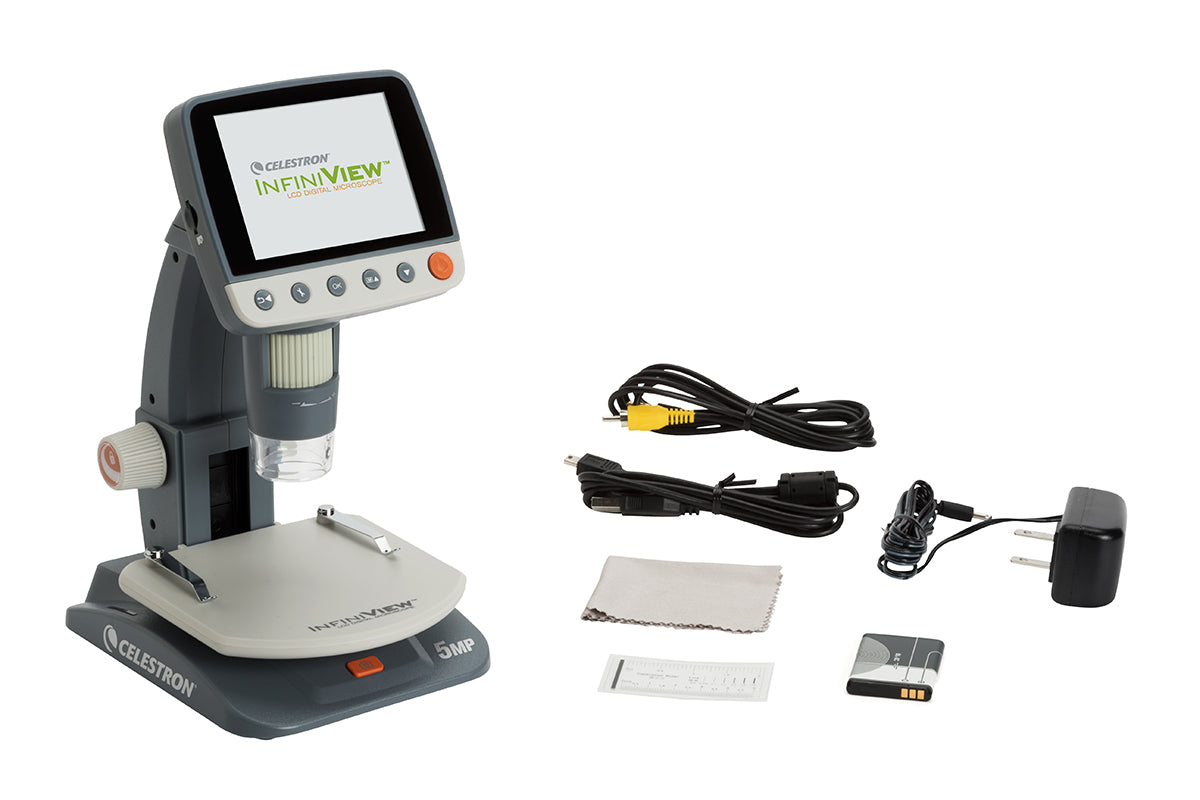

Included Accessories
- USB Cable 2.0
- TV out/AV cable
- Calibration Ruler
- Lithium Ion battery for portable use
- Quick Setup Guide
For use in Europe, this microscope is also available with a multiplug. Click here for product page.
Specifications
| General | |
|---|---|
| Type of Microscope: | LCD Desktop |
| Head: | Fixed Head, 3.5" TFT LCD Screen |
| Nosepiece: | Clear plastic |
| Objective(s) Type: | Single adjustable internal objective |
| Focus Type(s): | Course Focus | Fine Focus |
| Focus Travel (per rotation): | TBD |
| Magnification Range: | 20x to 200x (800x with digital zoom) |
| Illumination Type: | Ring Illuminator- 8 LED-Adjustable |
| Illumination Position(s): | Upper-At Nose |
| Illumination Adjustability Mechanism: | Adjustment Wheel- On barrel |
| Power Source: | Rechargeable Lithium ion battery (1100 mAh) | AC Power Adapter (optional) |
| Battery Options: | Yes |
| Stage: | Solid base stage attached to microscope | No aperture or bottom illumination | With clips |
| Eyepiece Type: | CMOS Sensor in lieu of eyepiece |
| Sensor Size: | 5MP | 1/3.2" |
| Pixel Size: | 1.75 μm |
| Screen type: | Full color 3.5" TRF screen | PC Screen (USB 2.0) |
| Screen Size: | 3.5" |
| Memory Type: | Micro SD Card |
| Memory Size: | Up to 32G |
| Port(s) In: | 5V Power |
| Port(s) Out: | Micro USB 2.0 | Video/ TV out |
| AC Adapter: | Input: 100-240V 50/60Hz, 0.2A | Output:5V- 1A |
| Still image capture resolution: | 2592 x 1944 | 2112 x 1188 | 1538 x 864 | 640 x 480 |
| Video resolution: | 1920 x 1080 | 1280 x 720 | 640 x 480 | Max frame rate 30fps |
| Shutter trigger position: | On Stage and in software |
| Shutter Speed: | 1 sec. to 1/1000 sec. |
| Software: | Celestron Portable Capture Pro |
| Software compatibility: | Windows: 10/8/XP | Mac: OSX 10.4- 10.14 |
| Microscope Dimensions: | 149mm x 104mm x 227mm (5.8" x 4.1" x 8.9") |
| Microscope Weight: | 56 oz (1.6 kg) |
| Included Items: | USB 2.0 Cable | AC Adapter/charger | Calibration ruler | Rechargeable Lithium ion battery | Lens cloth | Quick Setup Guide |
Videos
Accessories
Support & Downloads
| Manuals: |
|---|
| Infiniview Quick Setup Guide |
| InfiniView Manual |
| Software & Firmware: |
| Windows OS - Portable Capture Pro 3.0.1 (Windows Vista and XP) |
| Windows OS - Portable Capture Pro 3.1.2 (System Requirements: Windows 7, 8, 10, & 11) |
|
MAC OS - Portable Capture Pro 3.1.2
System Requirements: 10.2 (Sierra) to 12.3 (Monterey) |
| MAC OS - Portable Capture Pro 3.0.1 (Mac OS 10.11 and earlier) |
